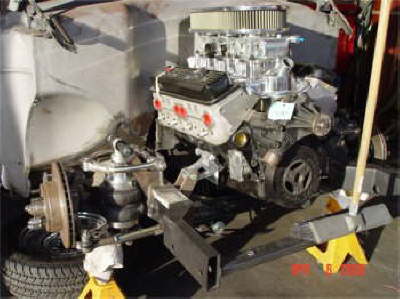

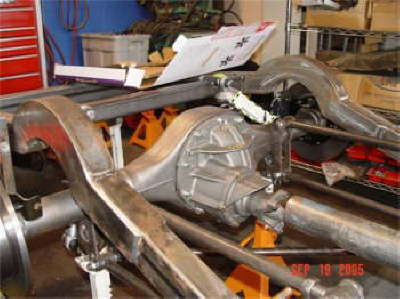

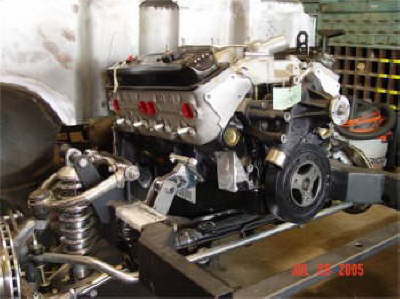

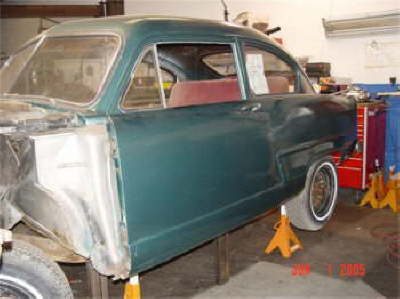

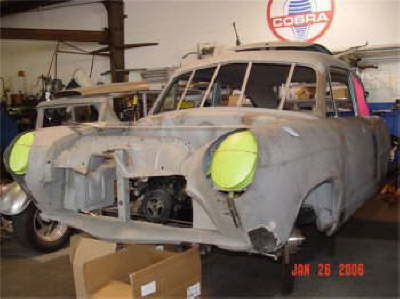

I thought I would send you some pics of a 51 Henry J that I am having built by Super Rides by Jordan In Escondido Ca. I Found the car in Illinois in 05 and have been working on it for about a year. Using a ZZ4 crate motor with Barry Grant six shooter 3 deuce set up, Fat Man front clip, 700R trans, Ford 9″ rear end, custom fab frame 4 link rear, Mercedes headlights, reshaped rear side windows, removed door vent windows, all body seams welded, and drip rails filled and rolled. Thought you might put this in your garage shots section. It is nice to see what others are building, it gives me lots of ideas. Thank you, Larry Henderson

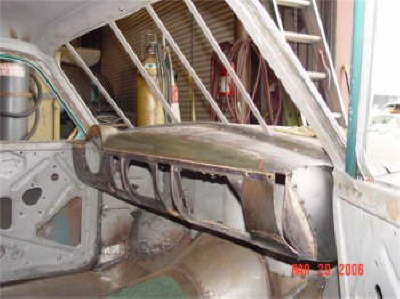

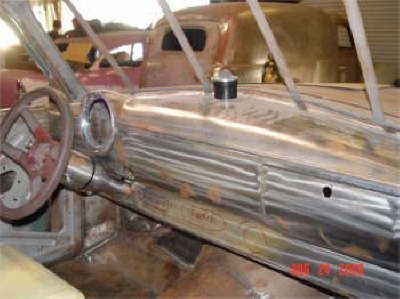

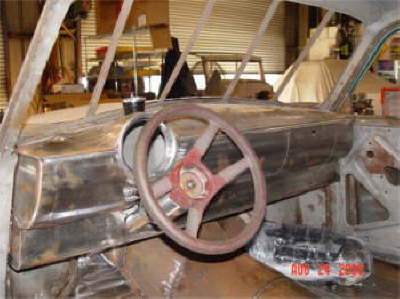

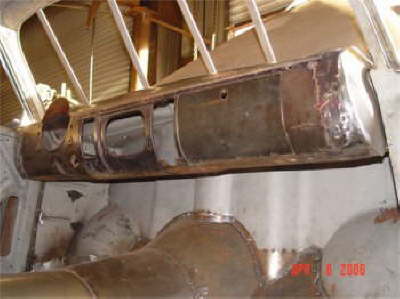

		’These three pictures are of the latest work being done on Larry Hendersons 51 Henry J which is the dash from a 50 chev going in

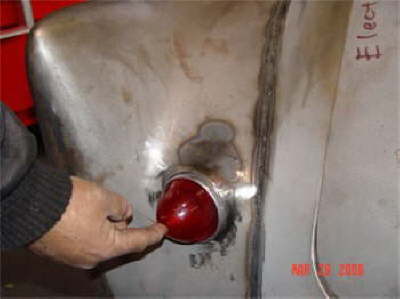

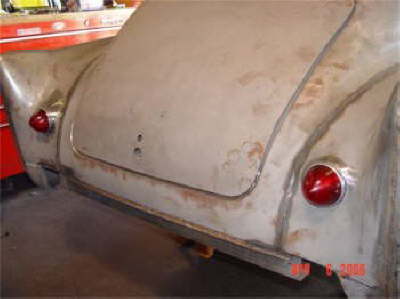

fitting new taillight rings with 58 chev lenses.
Latest 4 pics. Dash completed and installed. Air ride suspension going in. Tail light work almost complete, left light area re-shaped and right light area not done yet.

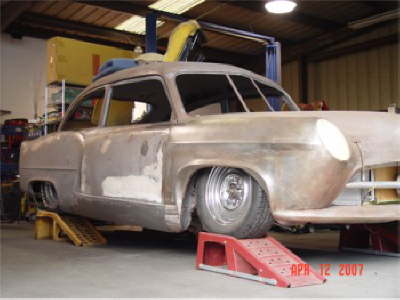

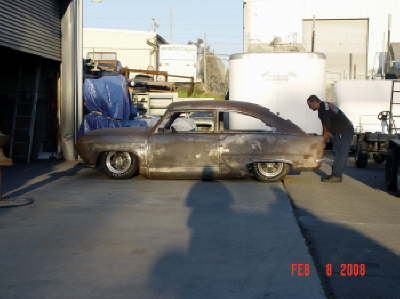

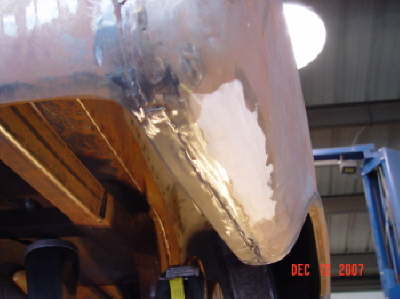

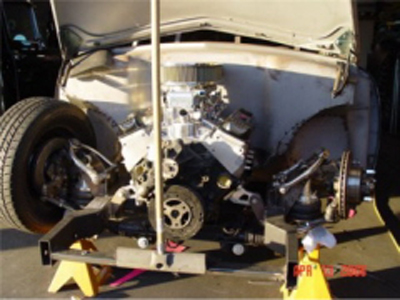

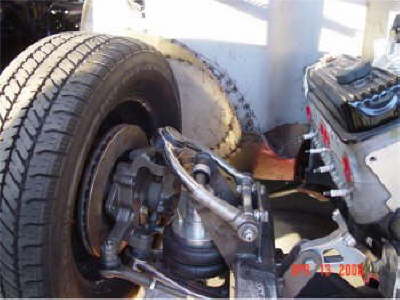

These three are Larry Henderson’s latest garage shot pics with air ride installed in front		rework of wheel wells for tire clearance when slammed to the ground. Larry

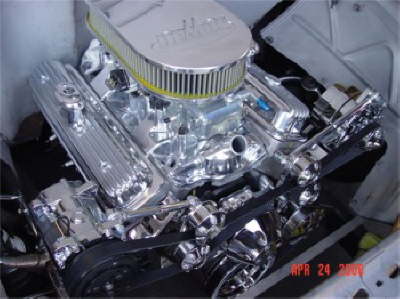

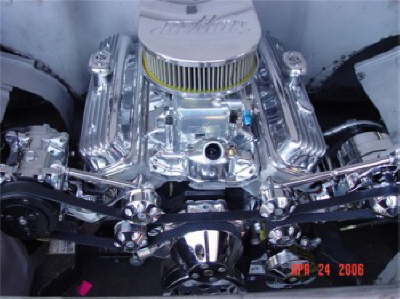

		These next three pictures are street and performance chrome plated serpentine system being dry fit

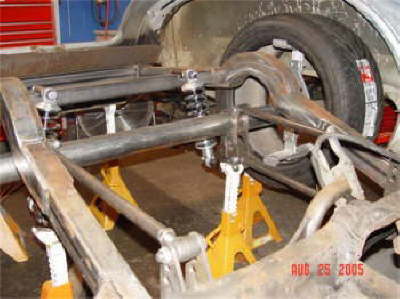

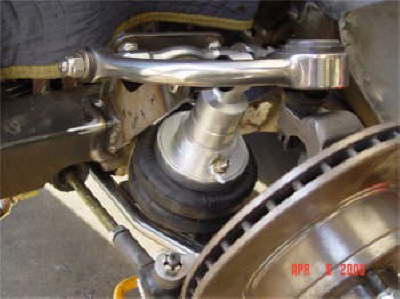

		air ride technologies system being installed.

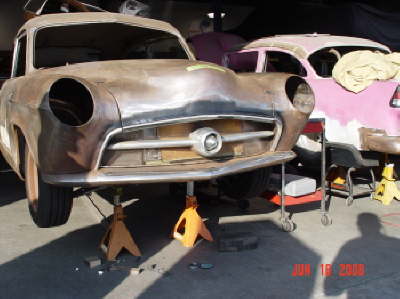

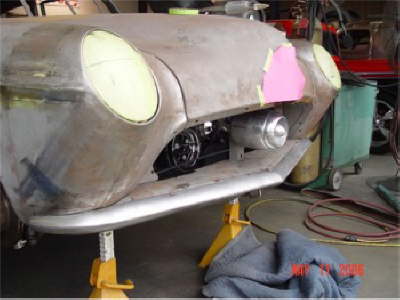

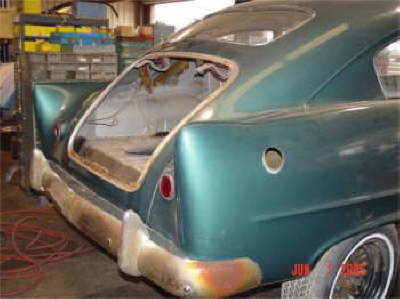

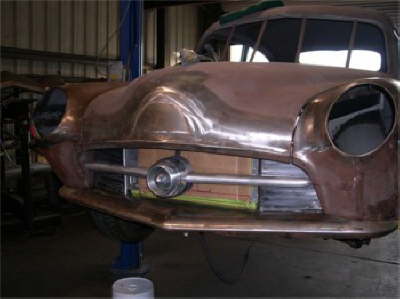

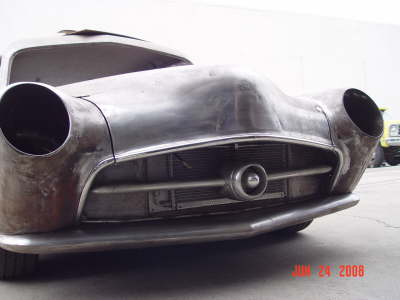

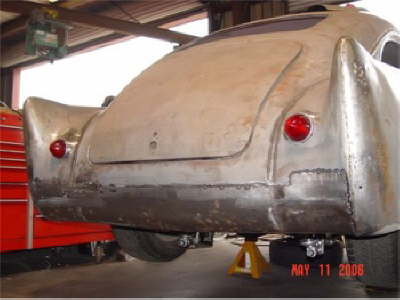

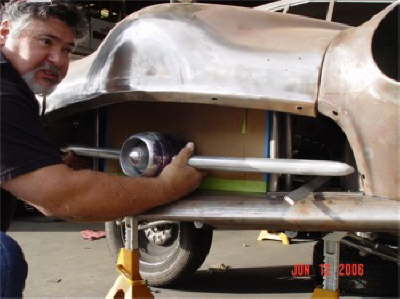

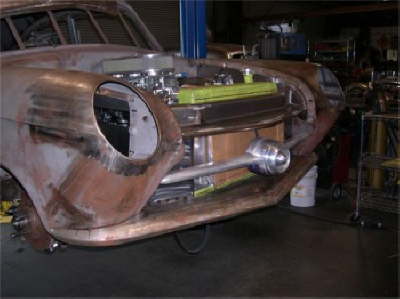

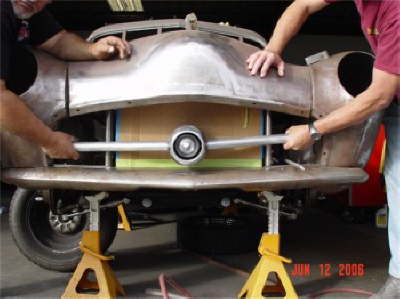

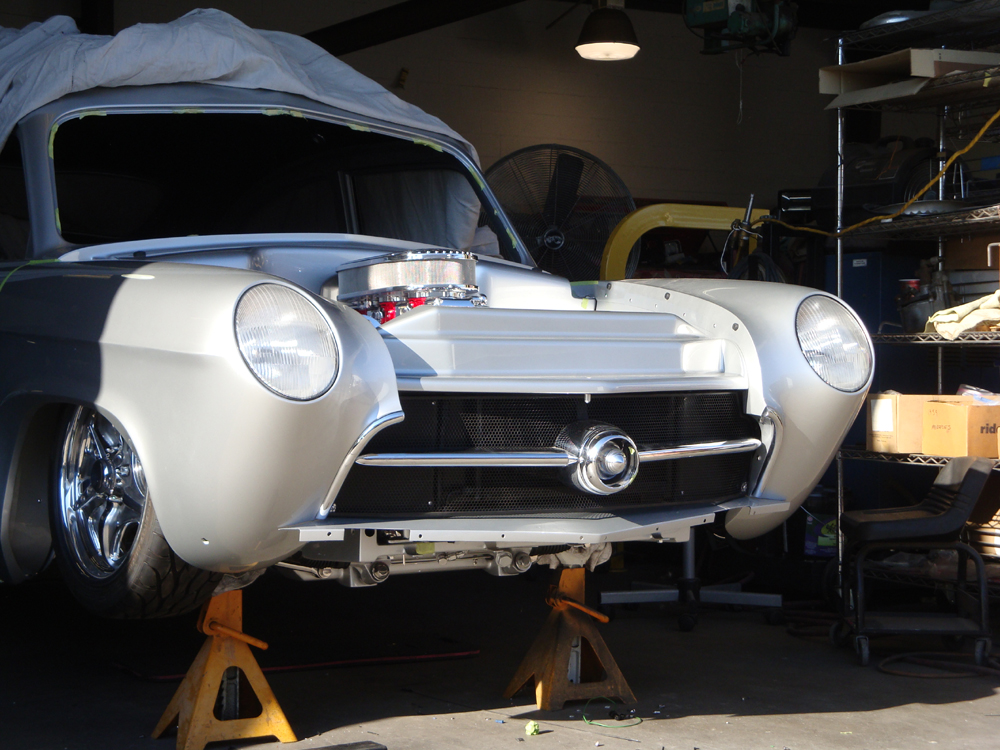

A couple garage shots of the latest work being done. Rear roll pan work and front grille center section fabrication starting along with 68 Camaro front bumper temp. installed

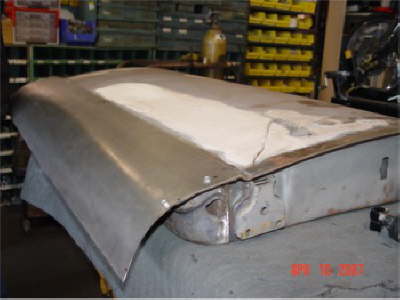

Larry’s latest work is radiator support work, filling in hood center opening

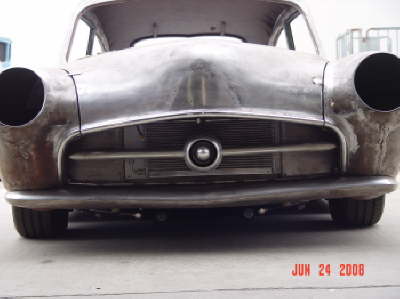

fabricating new grille center piece.

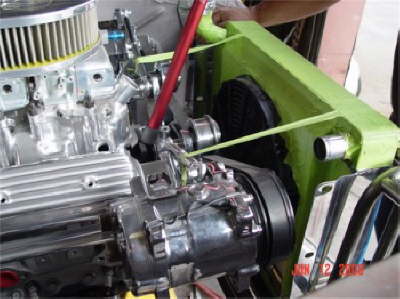

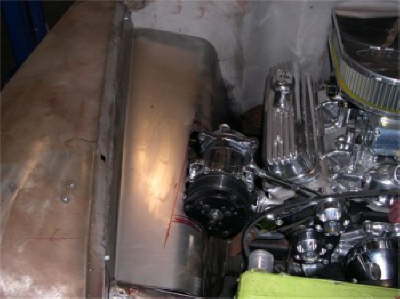

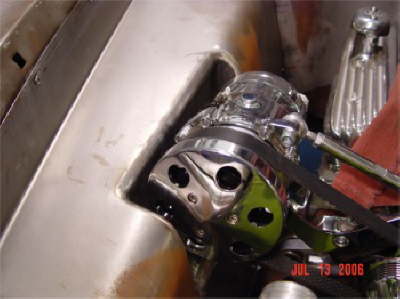

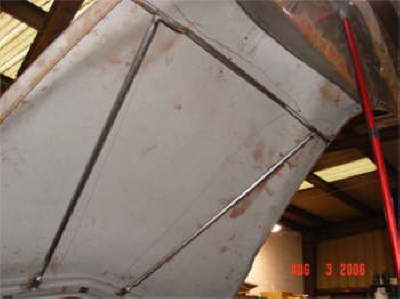

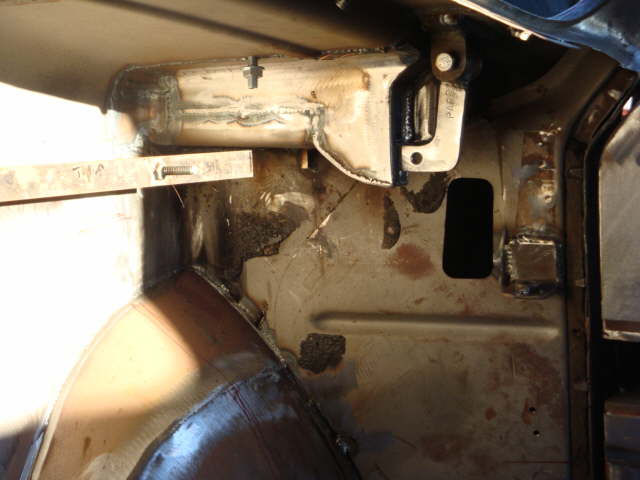

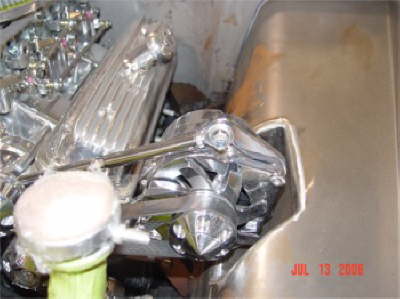

Here are two shots of inner fenders being made to accommodate the AC compressor and the alternator.
All Body modifications are getting close to being completed.
Here are two shots of inner fenders being made to accommodate the AC compressor and the alternator. All Body modifications are getting close to being completed.

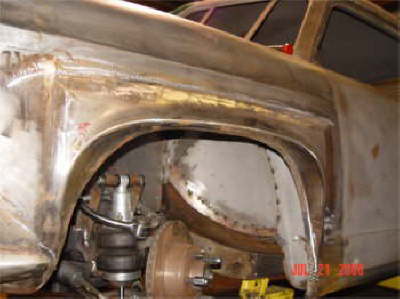

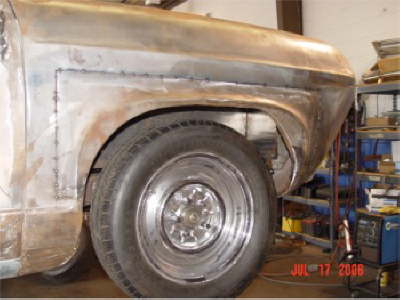

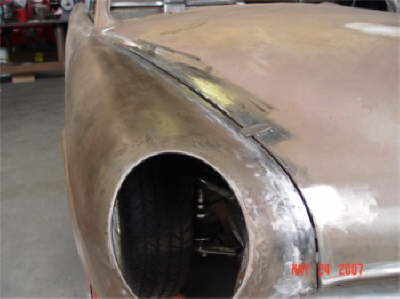

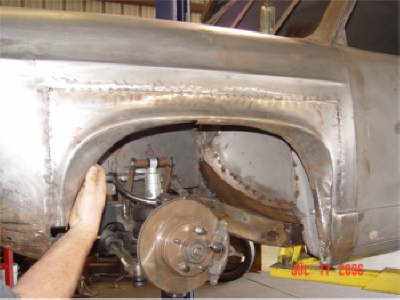

a couple shots of each side of the front fenders. We raised the wheel openings just 1” higher that original but it makes a lot of difference in the turning radius with the air ride suspension.

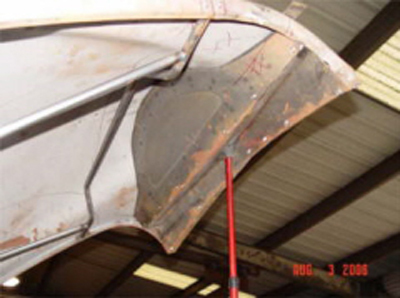

Visited the car this morning and took a couple of shots. Completed Wheel openings after raising 1″.		Reinforcing the hood and hood latch area work

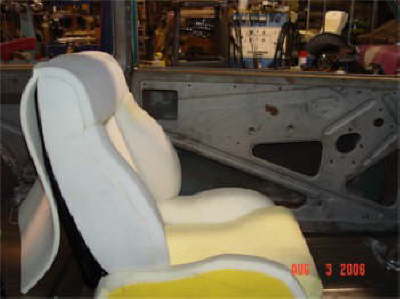

		Front bucket seats from glide engineering arrived.

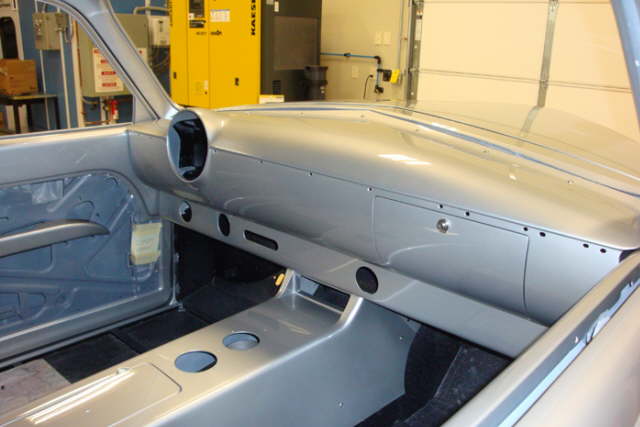

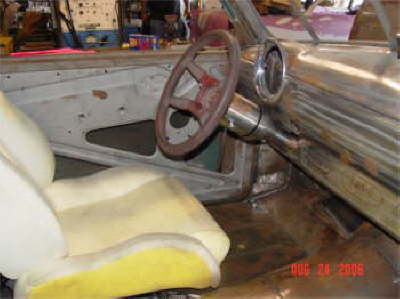

Seats from Glide Engineering arrived and are being dry fit.		Here are a few latest pics of what has been going on. Dash work and steering column installation.

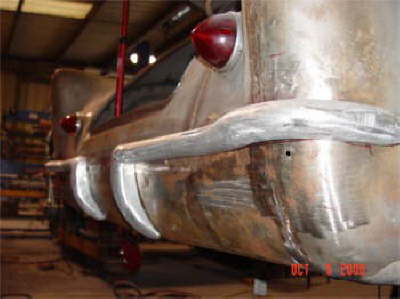

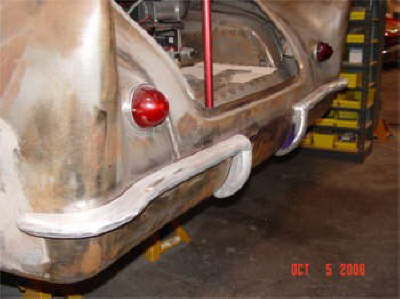

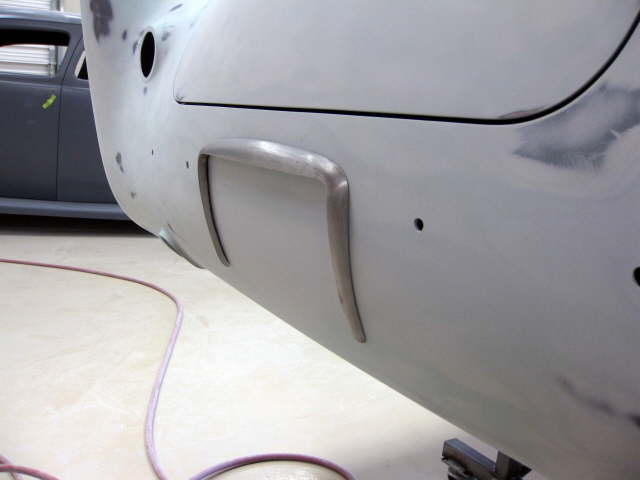

		Here are a few shots of the rear bumpers being made from aluminum then will be chrome plated.

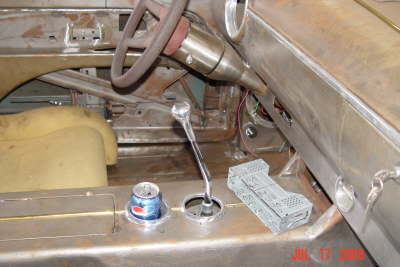

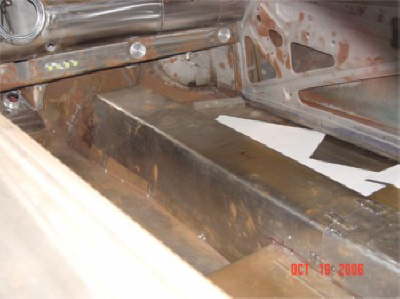

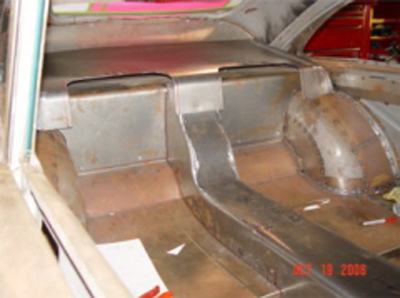

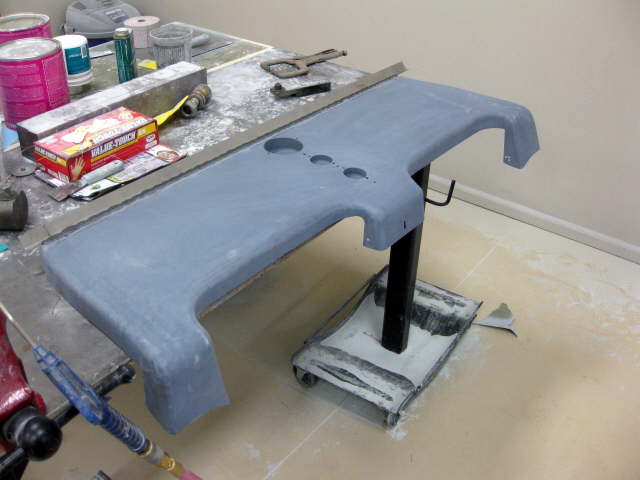

Here is a few shots of work that has been started on the console		rear seating area. Still in the design process, just trial and error to see what works.

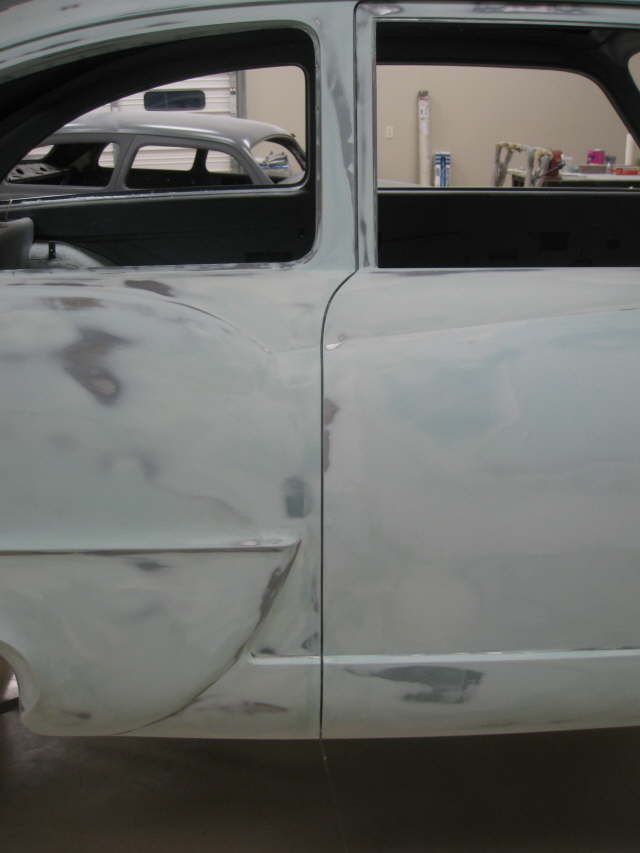

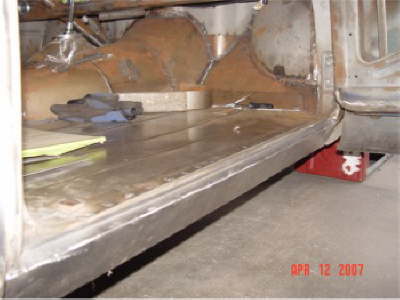

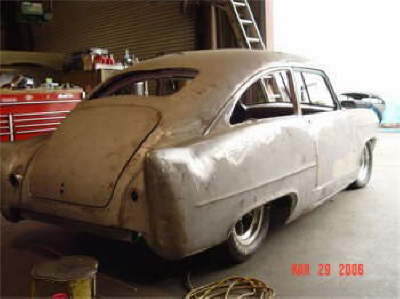

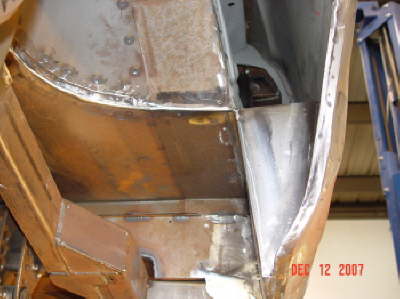

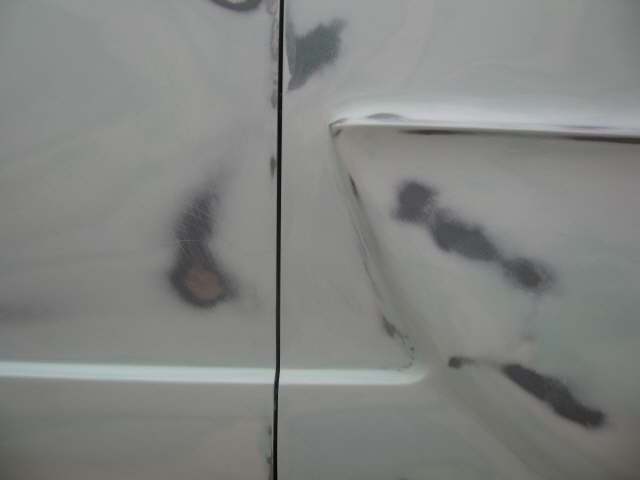

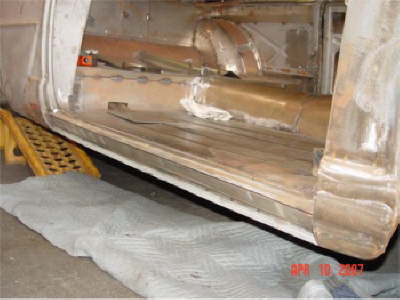

		The rocker panels are being set in to allow for the door bottoms to be lengthened down to the bottom of the rocker panels to eliminate the horizontal line that would normally be at the bottom of each door.
It takes away that horizontal line and looks a lot cleaner.		Here are a couple more shots of the concealed rocker panels.

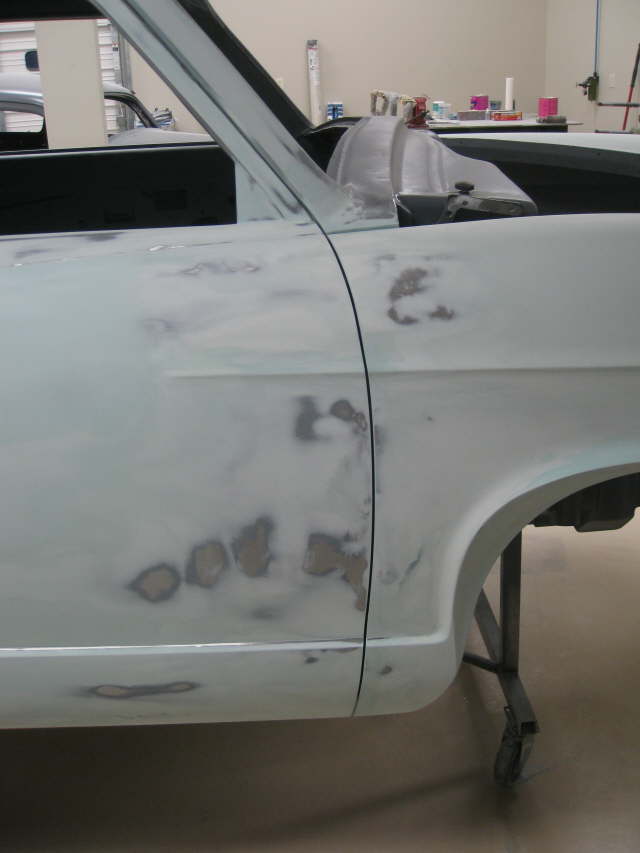

This side is almost complete, and the horizontal line is gone.		Just a couple shots of the work being done to close up the gaps between the hood and the front fenders.

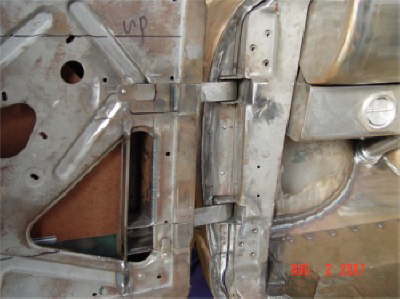

A lot more work than it looks like in the pictures. Both fenders had to be pie cut along the hood and metal added to them to make the gaps more uniform.		Here are some pics of the new Hagan door hinges installed.

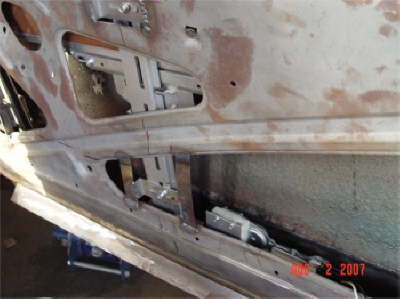

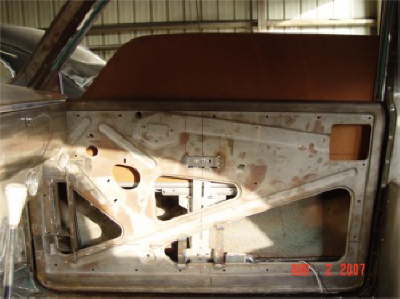

SPW power windows being installed.		Moving closer to going to body and paint

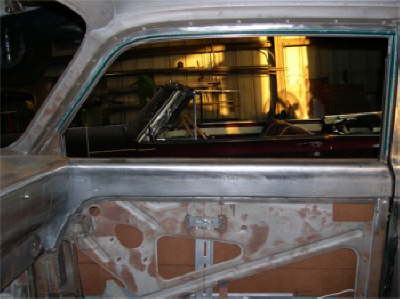

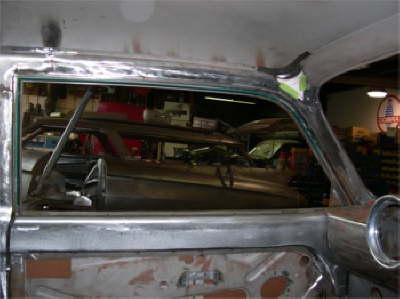

Here are  pics of some of the interior work that is being done.  This is a lot of work but the results will be more than worth it.		The door panels and roof lines are being re-worked to receive paint in some areas and provide a place for headliner and door panel upholstery to terminate at others.
		Not too far from going to body and paint prep

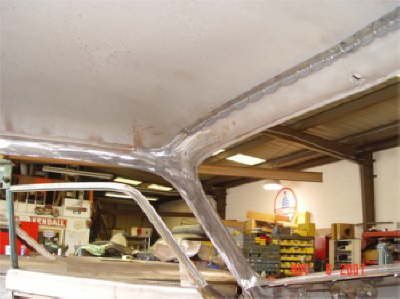

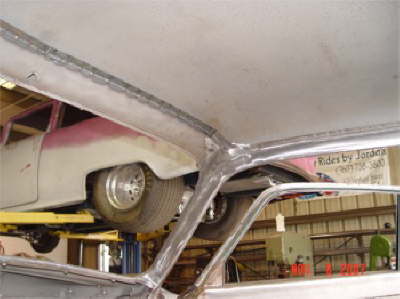

Here are 4 more pics of some of the interior modifications taking place.		It may not look like a lot of work but it takes a lot of time to fill in and smooth out all the lines inside around the windows and doors to make everything flow together.

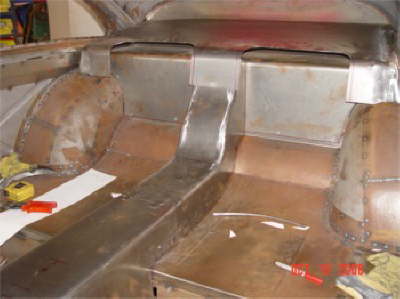

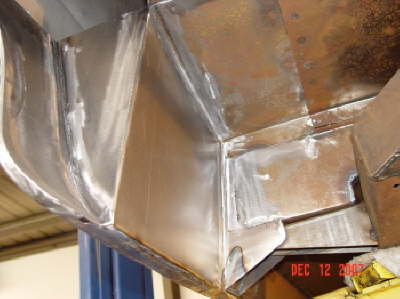

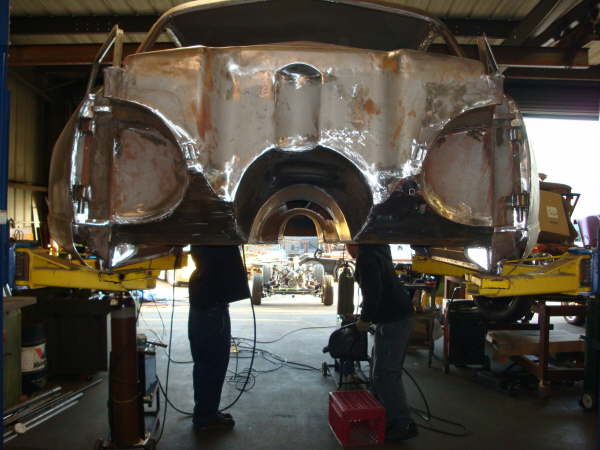

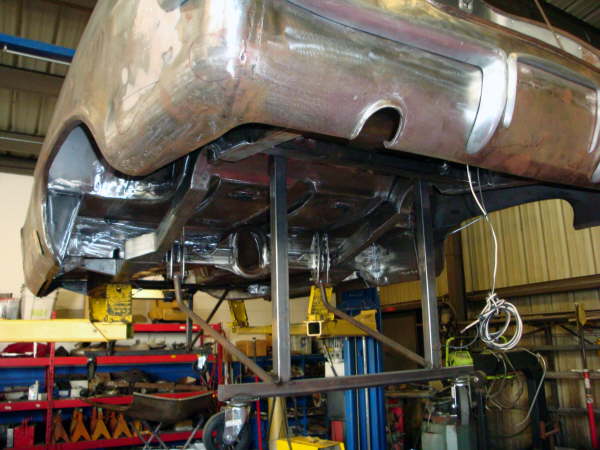

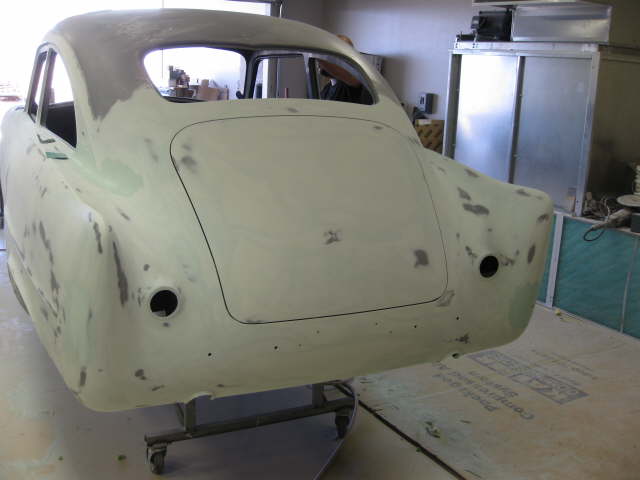

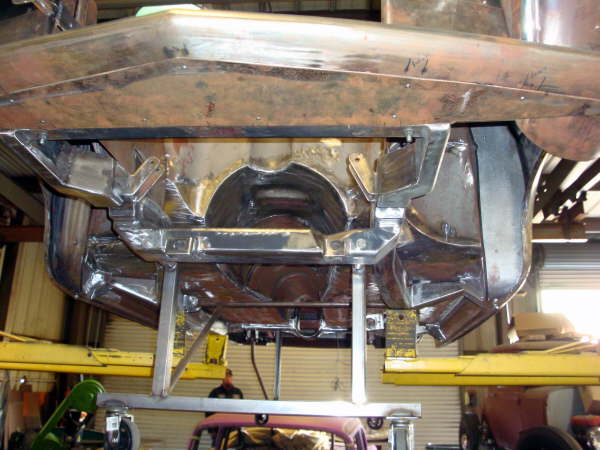

Here are 4 pics of some of the clean up work going on under the rear area of the car at the wheel wells and rear roll pan.

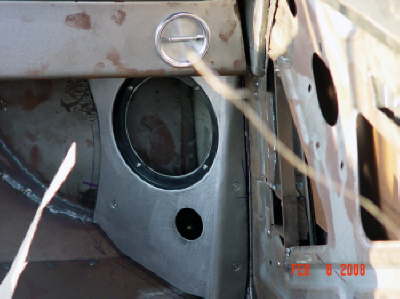

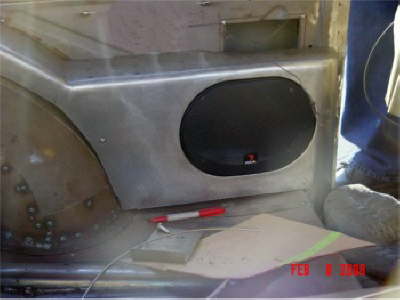

Here are a couple pics of work currently being done. Speaker installation both front and rear, with remainder of components to be in the trunk area

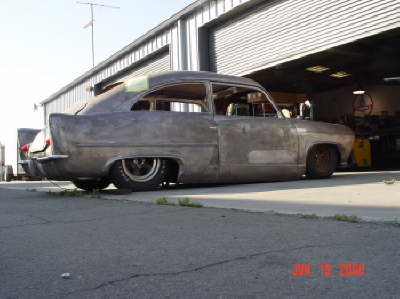

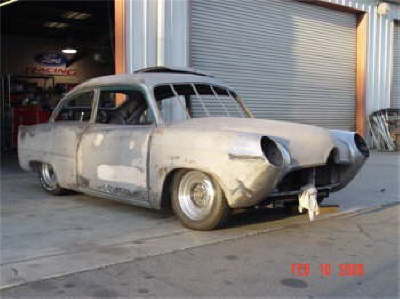

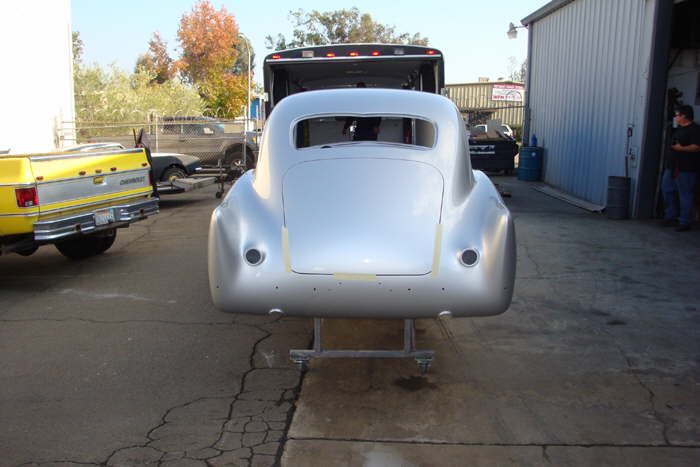

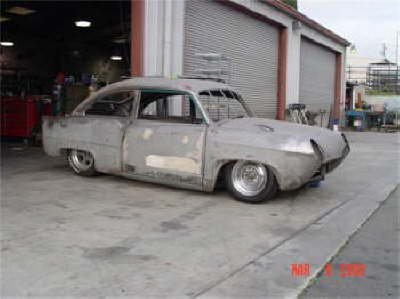

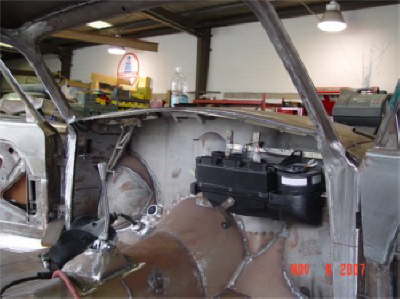

shot of it rolled outside.		windshield wiper motor etc. installation

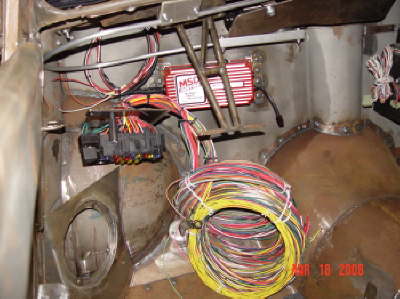

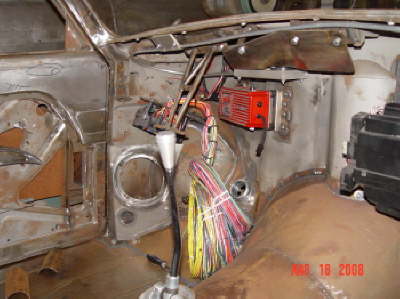

MSD ignition module, and wiring harness location		few pics of the hand made hood trim shaped from aluminum and will be chromed later

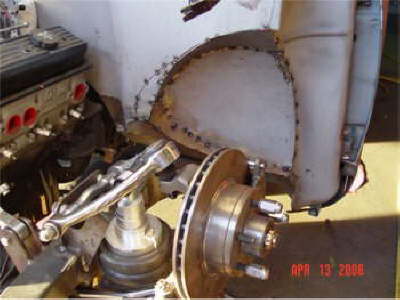

a passenger side shot also.		A few pics of recent work: Front rotors and brakes.  Working toward a completion date of early 2009.

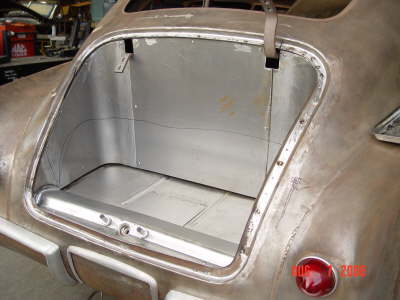

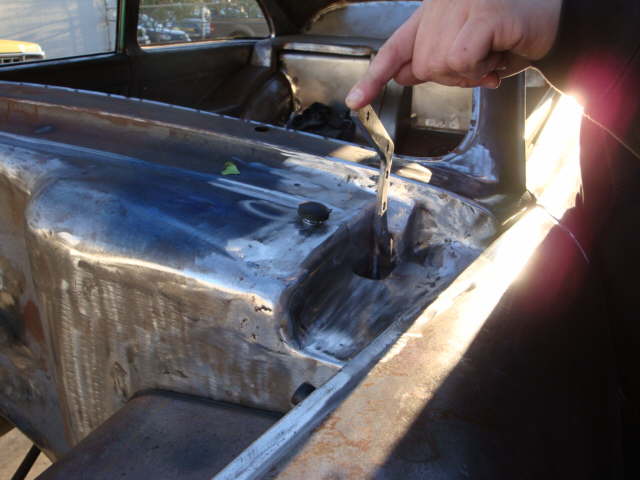

electric & manual trunk release		trunk area being enclosed

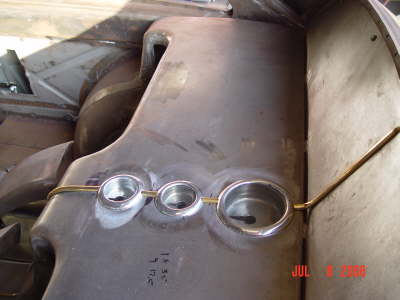

handmade hood trim pieces		3 pods, large one for GPS navigation system, one for satellite radio antenna, one for GPS Haneline Gauges

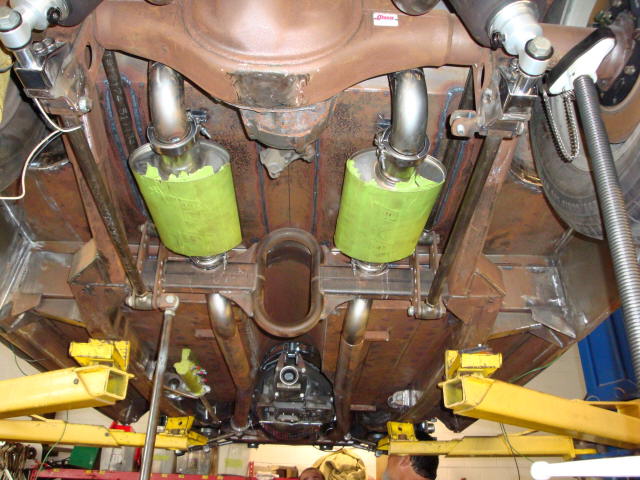

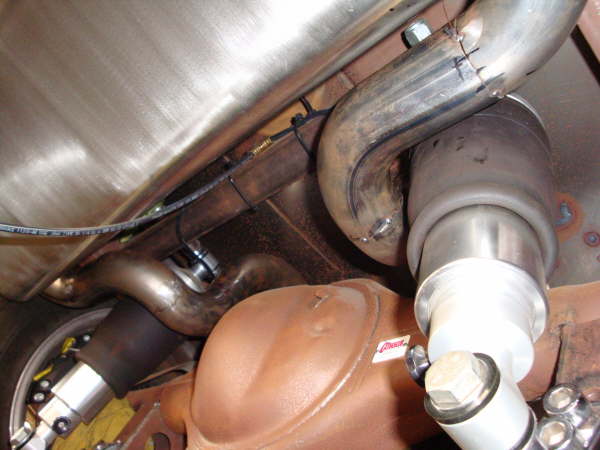

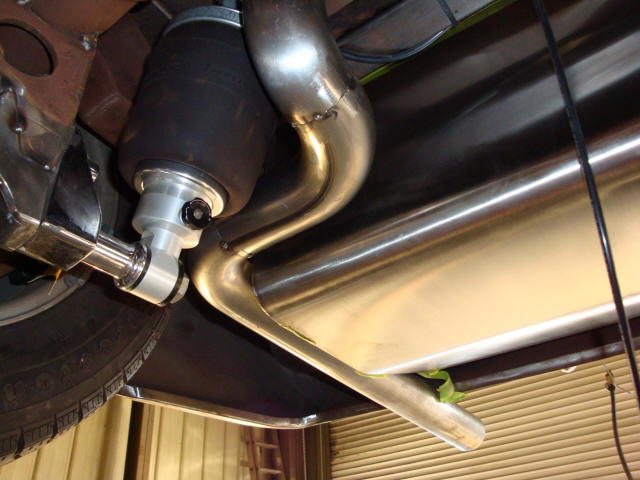

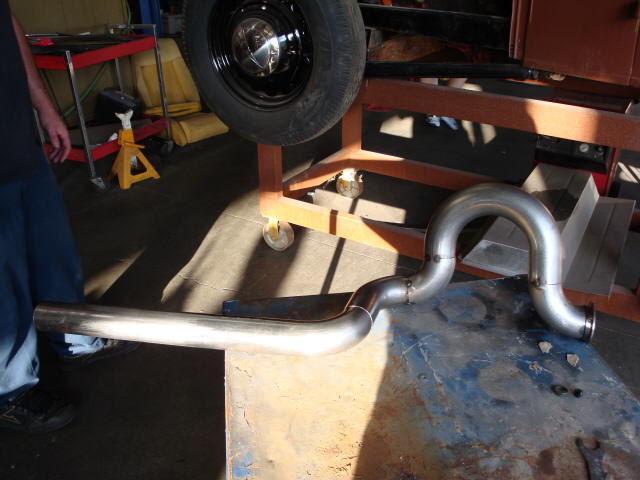

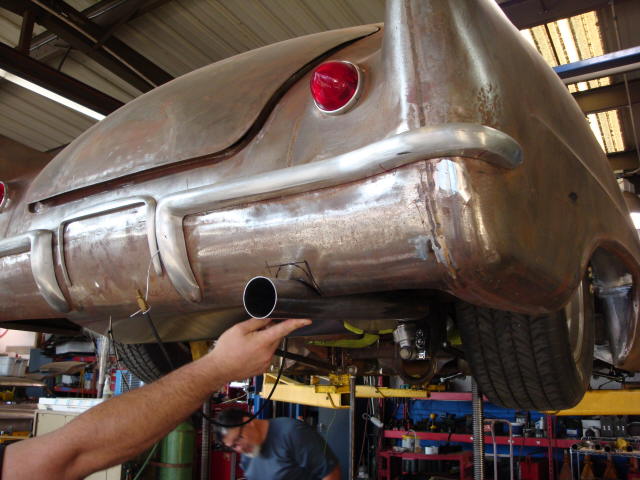

and the most important one the cup holder.		Here are some pics of the exhaust work being done.
A lot harder that it might look in these shots.

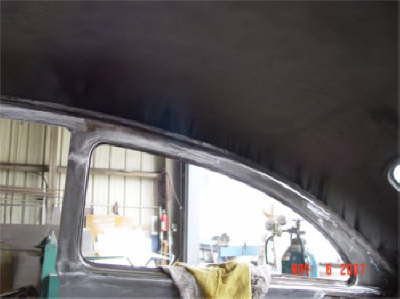

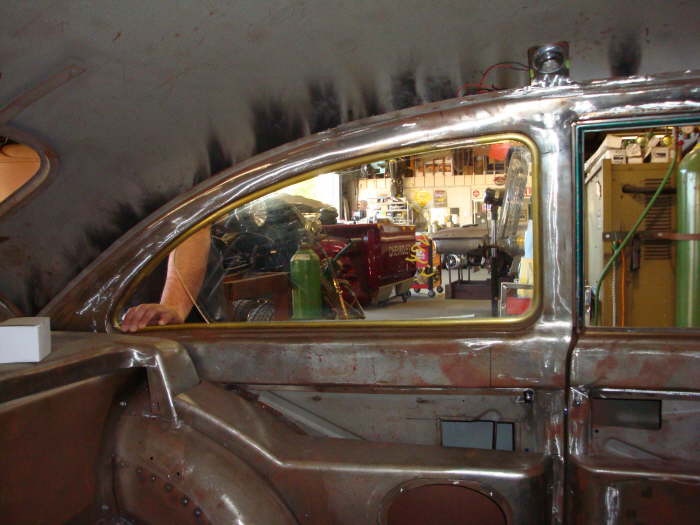

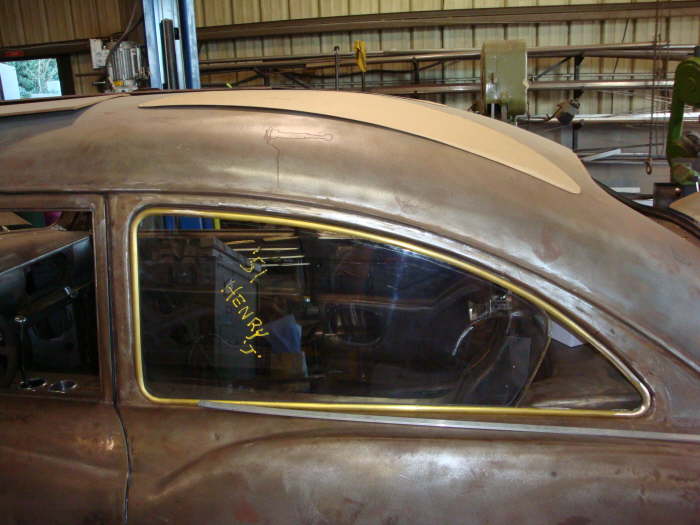

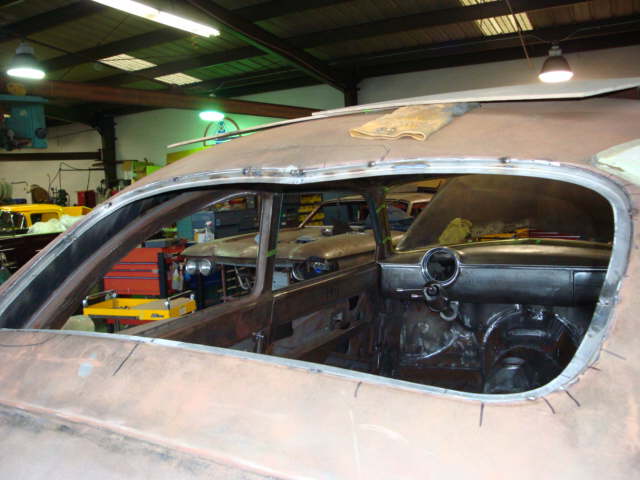

		I stopped by the car this morning and took a few shots of the trim being made to go around both the inside and outside of the rear side windows.
		It will be chrome plated when complete and will match the original chrome trim around the front and back windows.
		Some more recent pics of work on the Henry J.  Update December 11, 2008

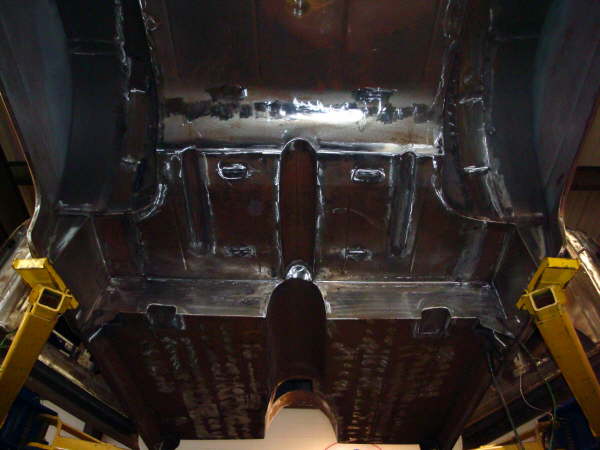

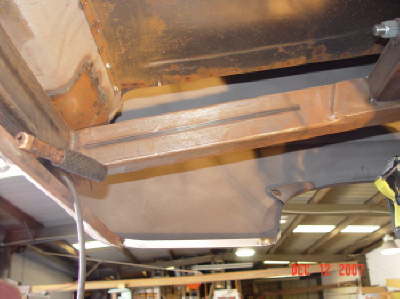

Getting the underside of the car prepped for paint

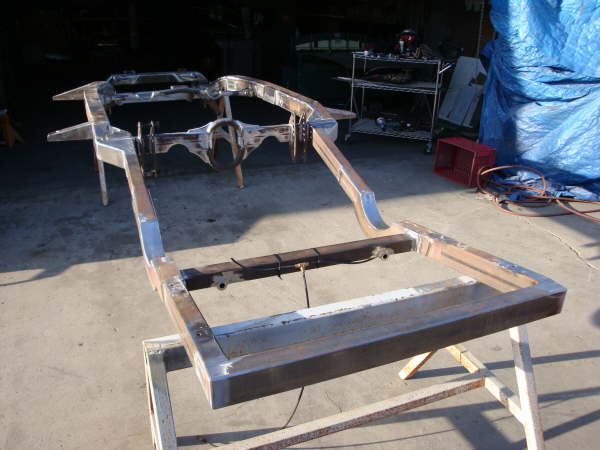

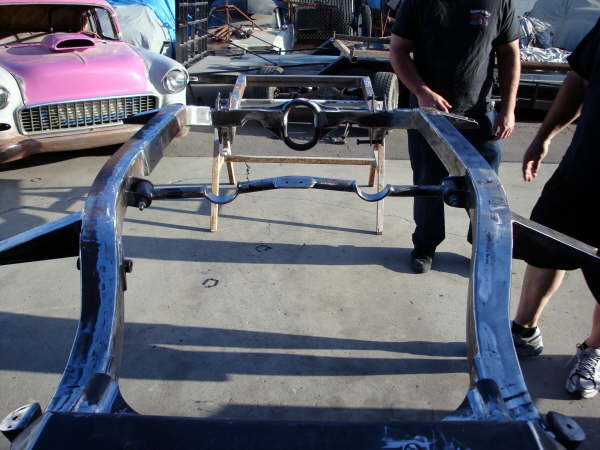

		as well as the frame

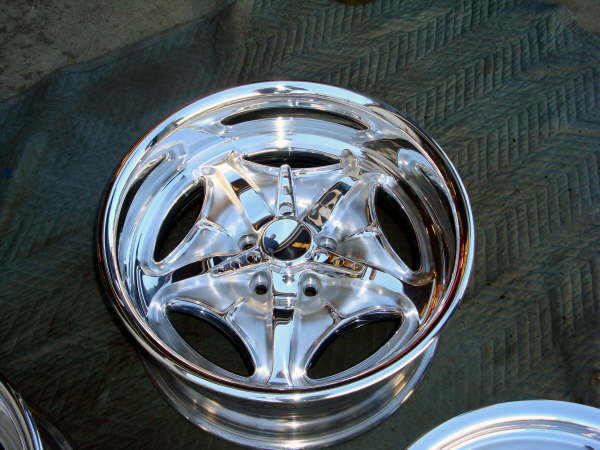

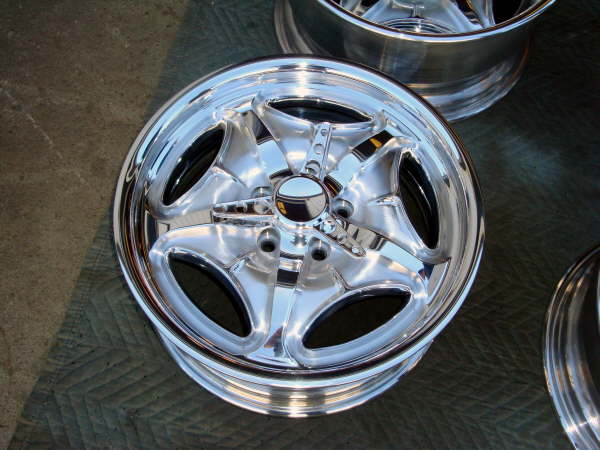

		One off wheels by Evod Industries have arrived.

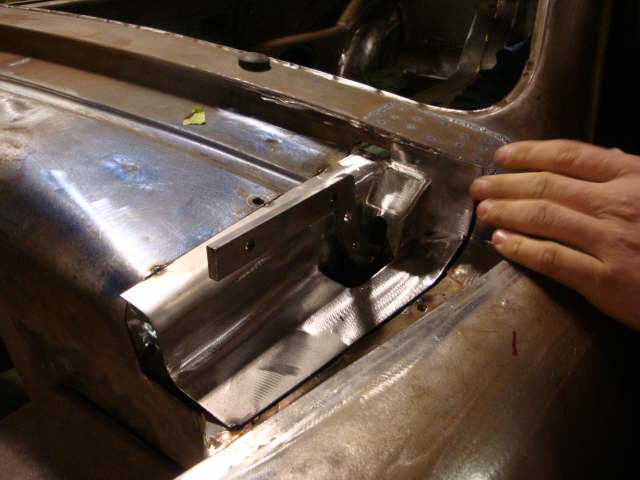

		Here are some recent pics of the work being done. The original hood hinges just weren’t substantial enough to prevent any side to side movement of the hood when opening or closing.
The decision was made to make new ones which would be sufficient enough to prevent any paint damage etc. when opening and closing the hood.

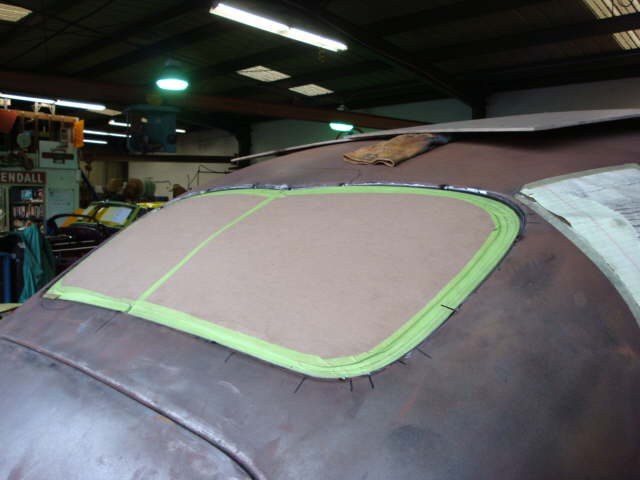

		January 30, 2009 Update: A few pics of the rear window being recessed down into the car

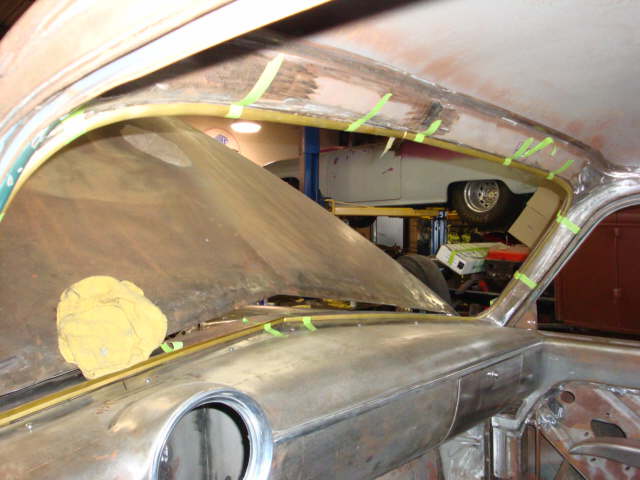

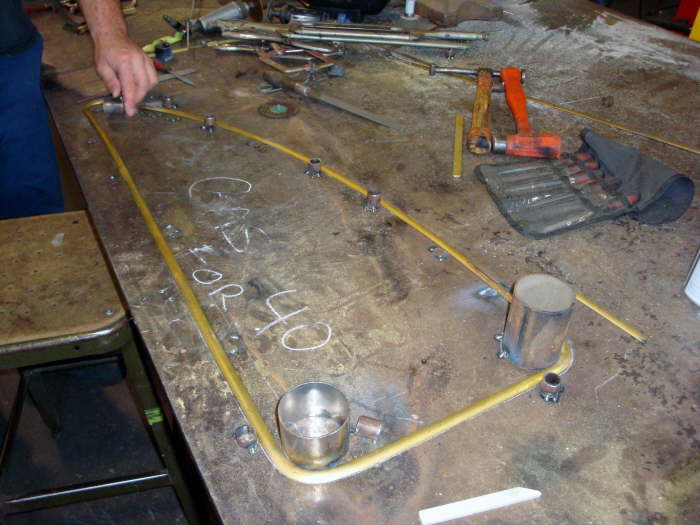

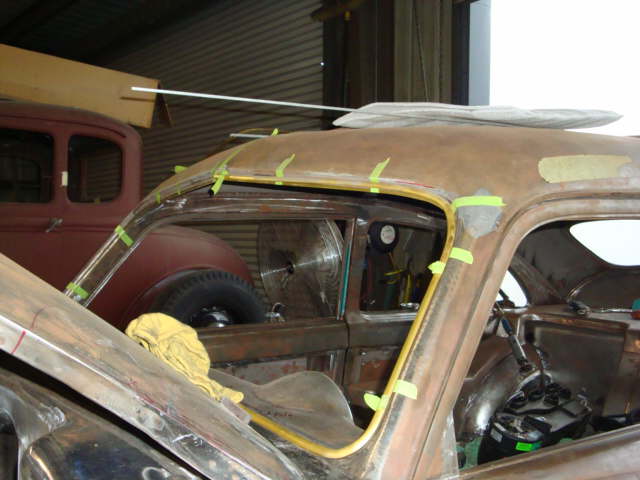

and the front windshield inside and outside brass trim that will be chromed.		All windows in the car will have the chromed brass trim like the windshield Just couldn’t handle the look of the big fat rubber weatherstrip around all of the glass so it is gone. This look will be much cleaner.

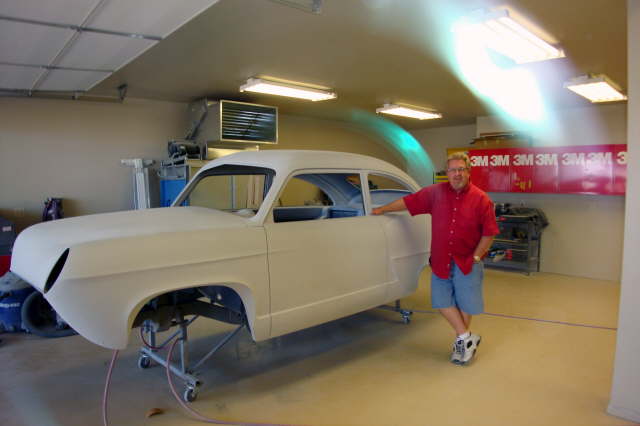

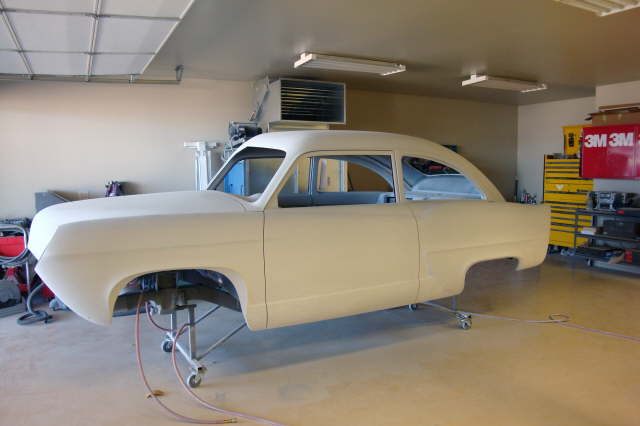

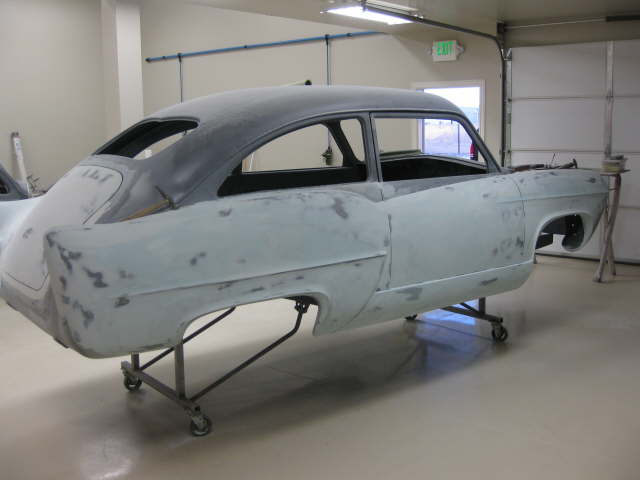

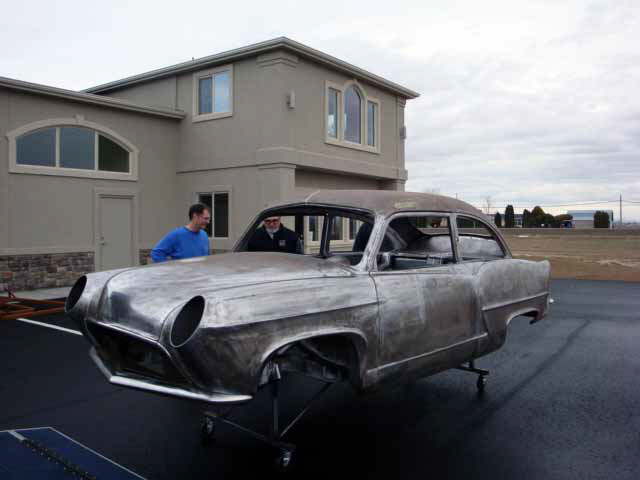

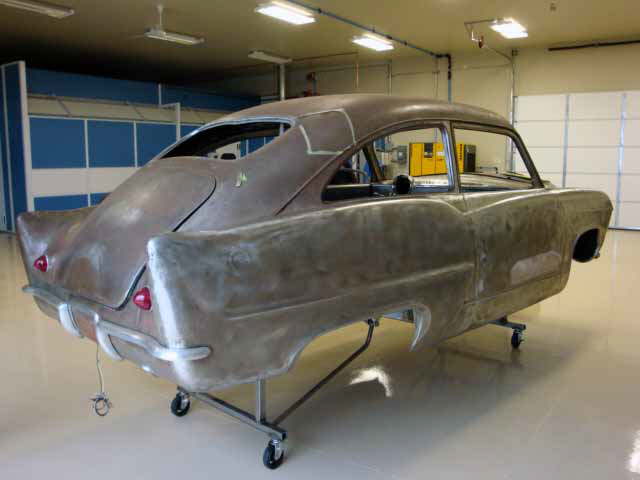

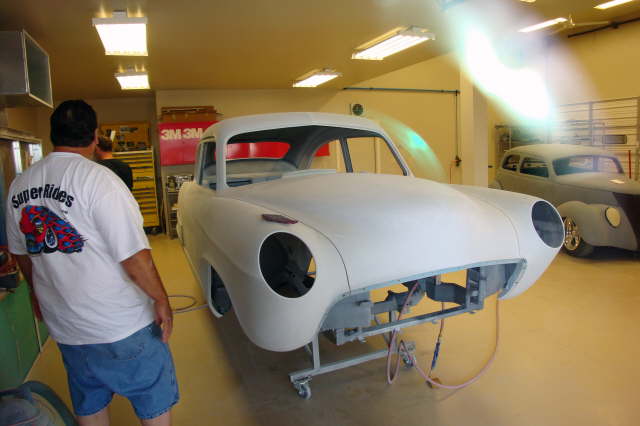

March 24, 2009 Update: recently dropped the car off at Charlie Hutton’s shop in Nampa Idaho for prep & painting.		Hopefully will be ready in about 3 months.

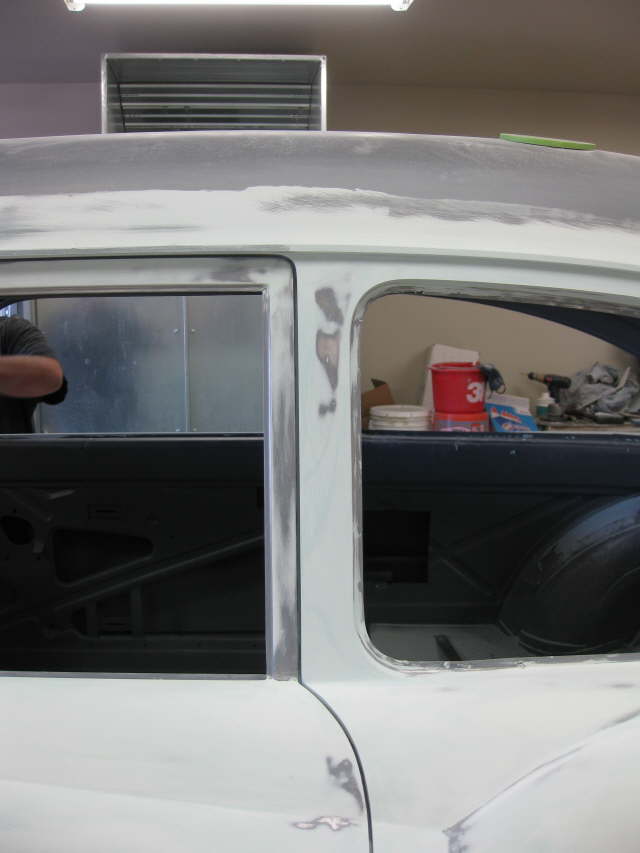

Then another 3 months to put everything back together and it might be ready to drive.		Update: June 2009…Latest pics from Charley Hutton Color Studio in Nampa Idaho. It is looking very nice

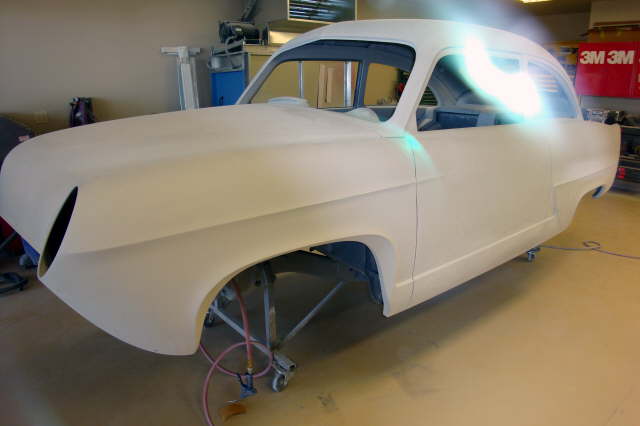

Update: June 26, 2009-Pictures of latest work being done at Charley Huttons. Rear package tray area, rear roll pan area, and spot prime body.

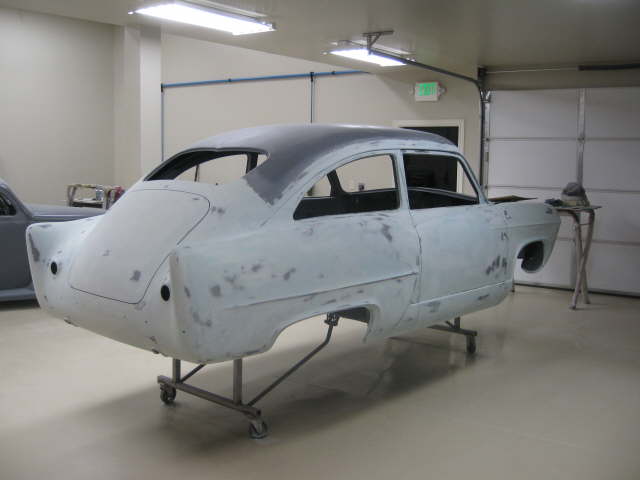

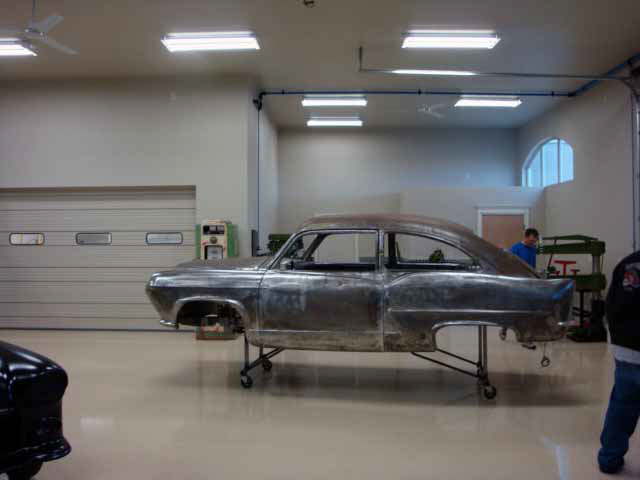

		Update: Aug. 10, 2009 -Took a trip up to Nampa Idaho to check on the car, at Charley Hutton’s Color Studio. Here are a few pics of the progress.
It should be finish painted in the month of August and ready to bring back to Ca. in September.
		The work done so far is absolute perfection as far as I can tell.

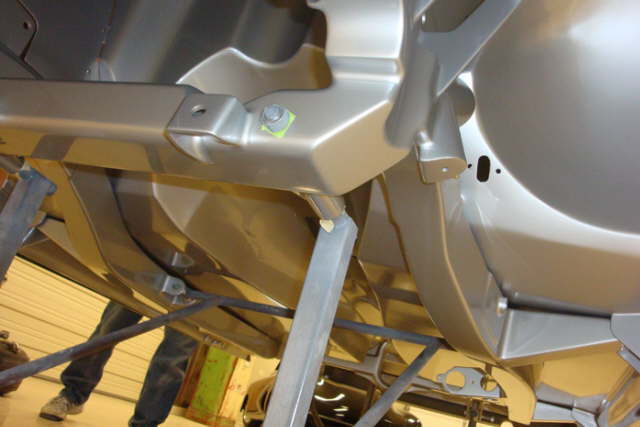

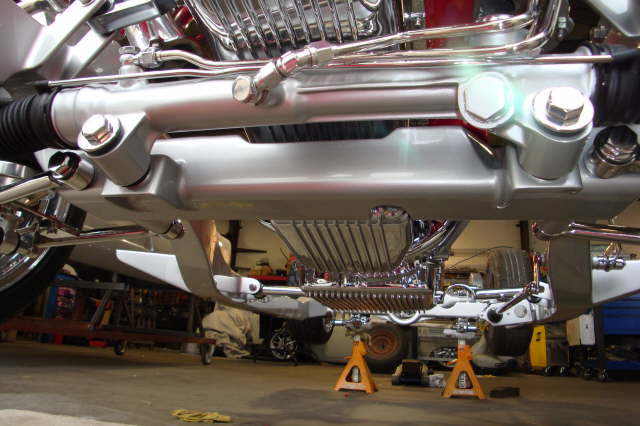

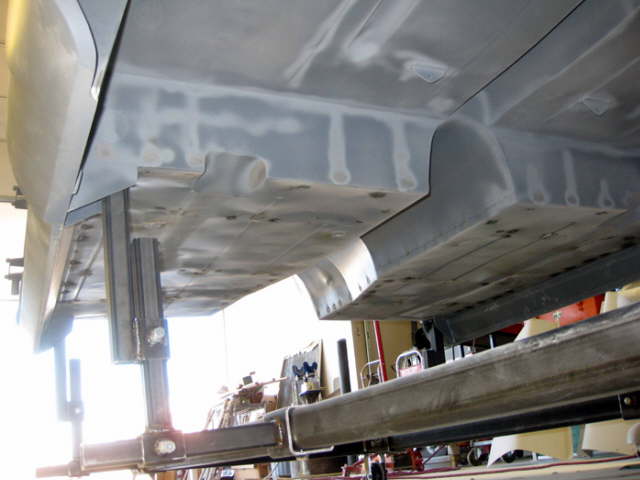

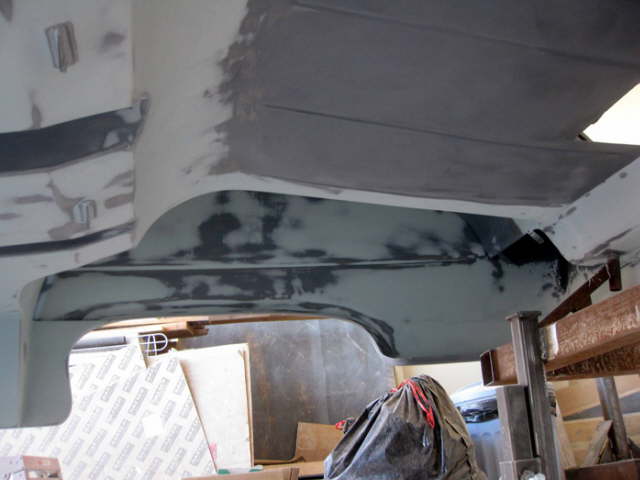

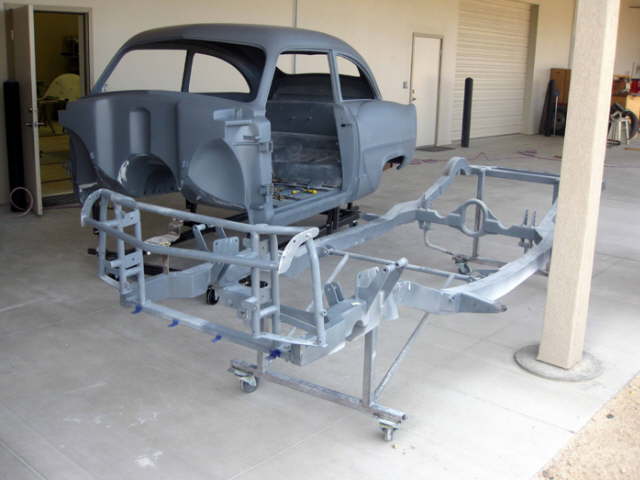

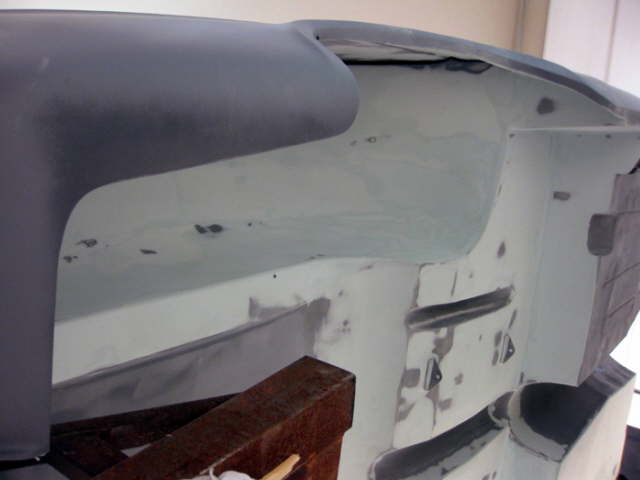

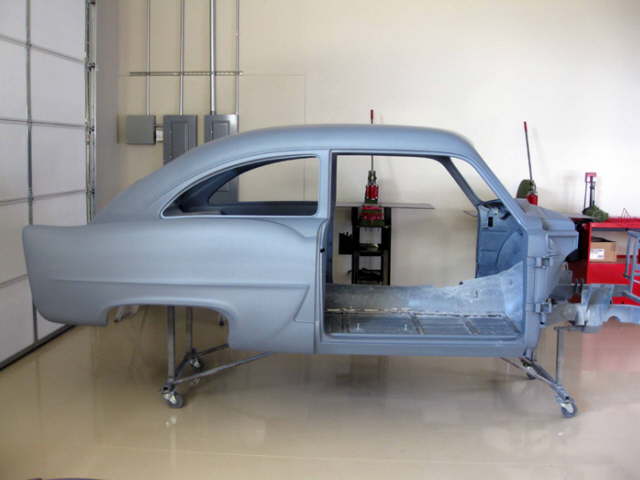

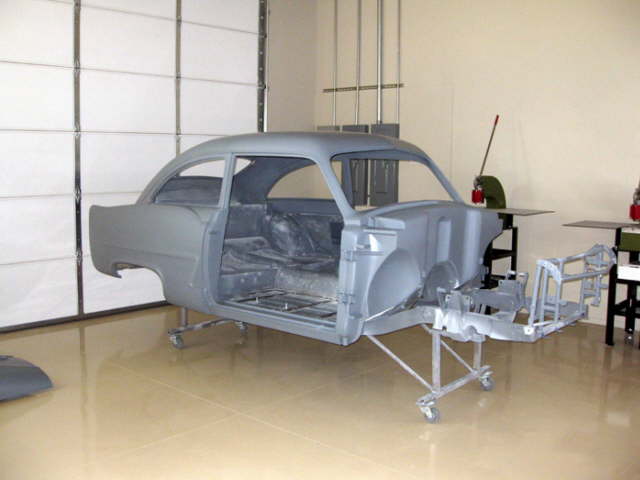

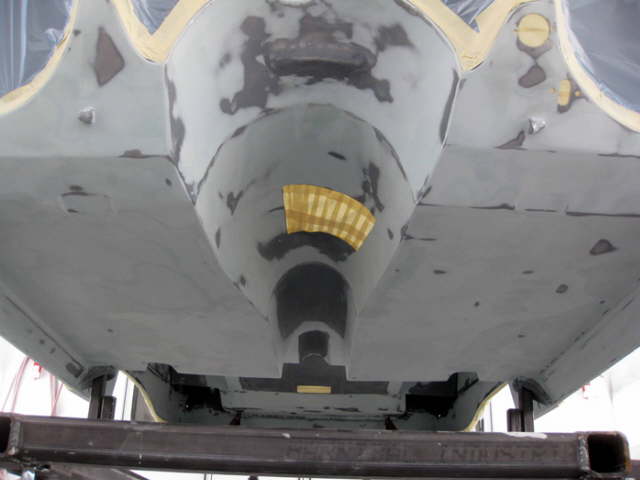

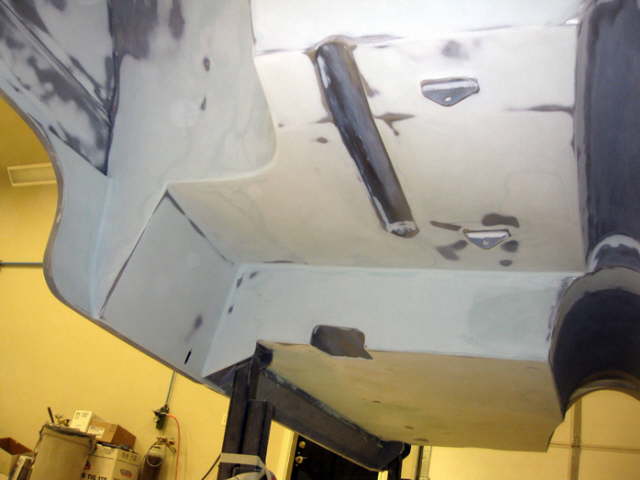

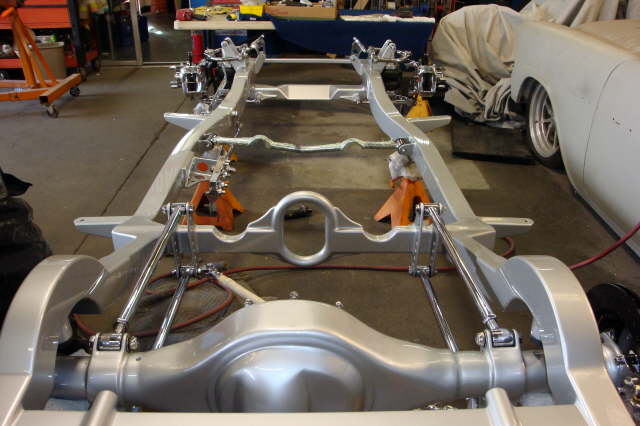

Update: Sept. 15, 2009- Here are the latest pics of the work being done on the car at Charley Huttons Color Studio, mostly of the underside of the car. Final painting will begin first week in October. Getting closer to completion

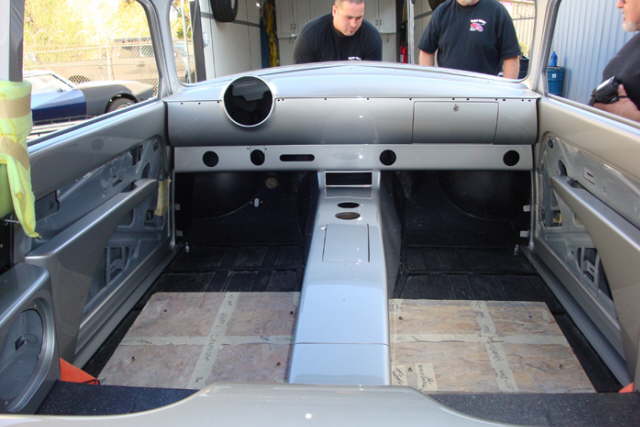

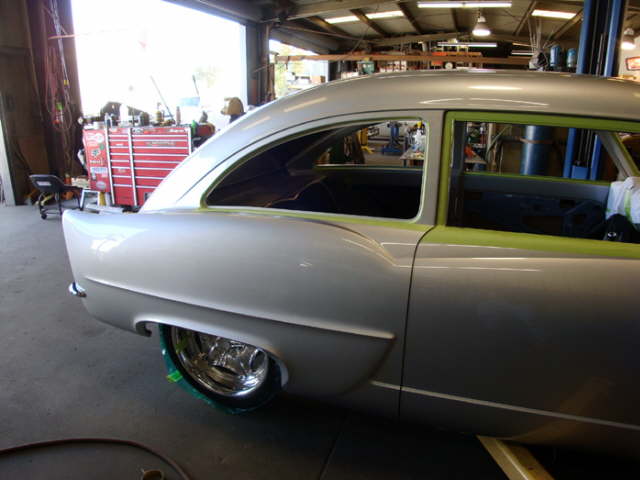

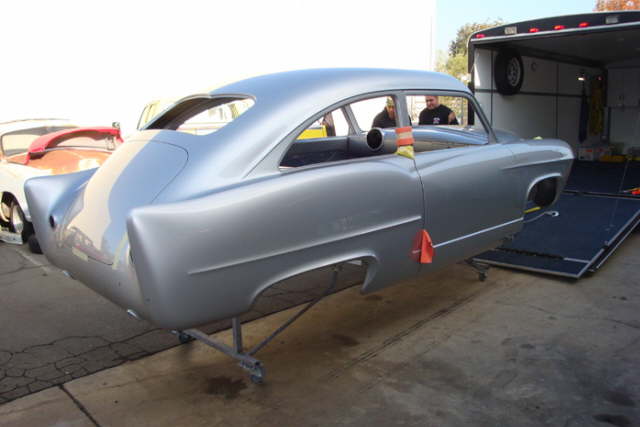

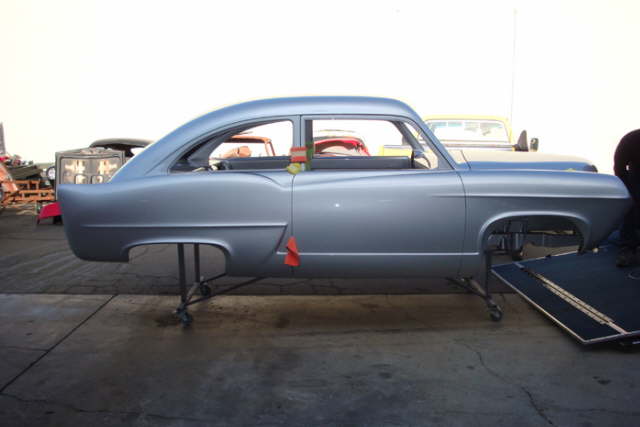

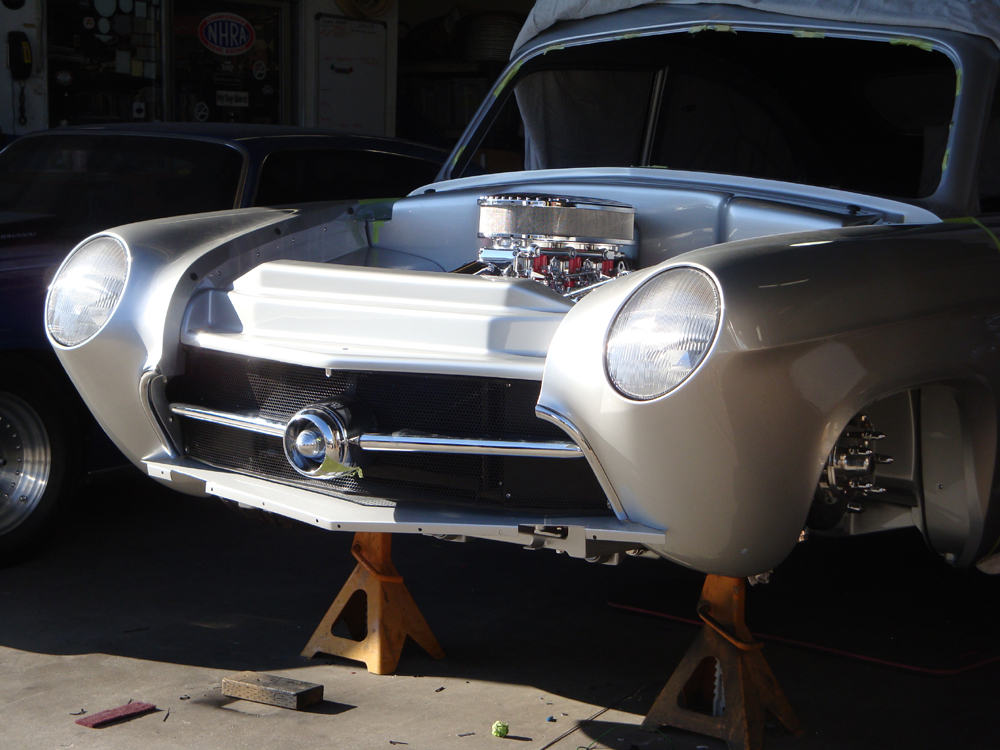

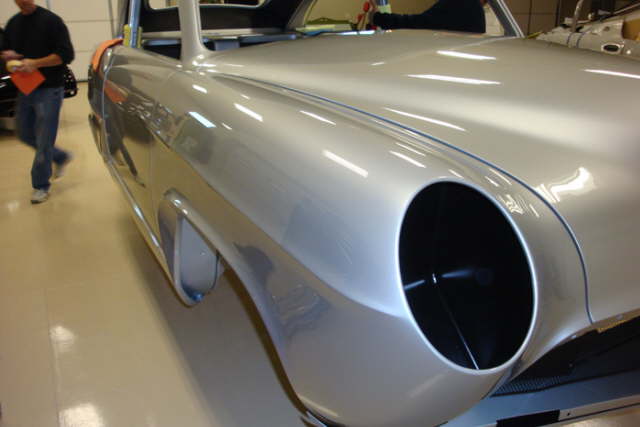

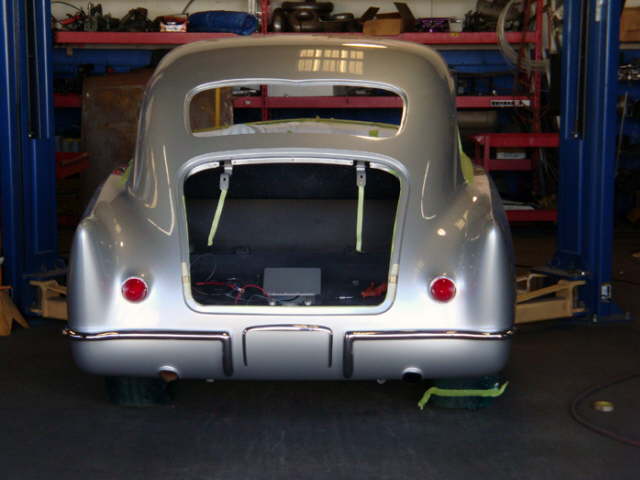

		Update: Dec. 7, 2009 – I recently picked up the car from Charley Hutton’s place in Nampa Idaho. Here are a few pics of it now that the painting and body work is complete. It looks fantastic I think.

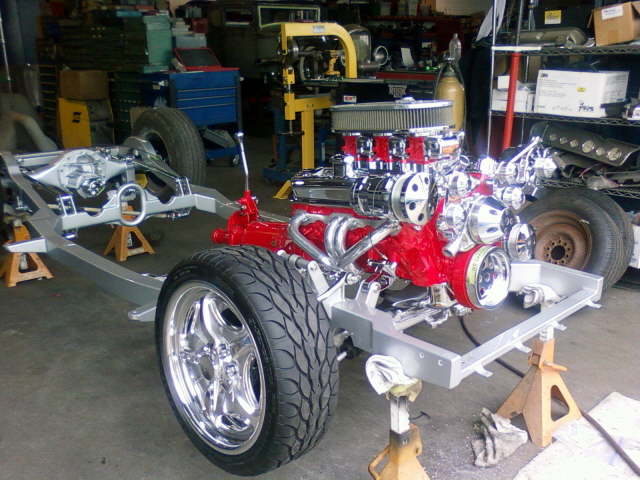

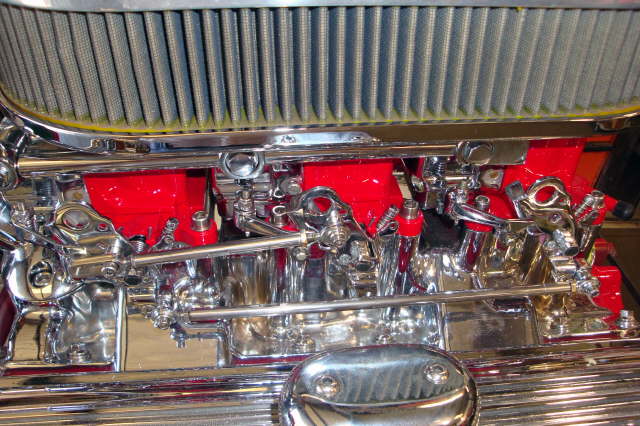

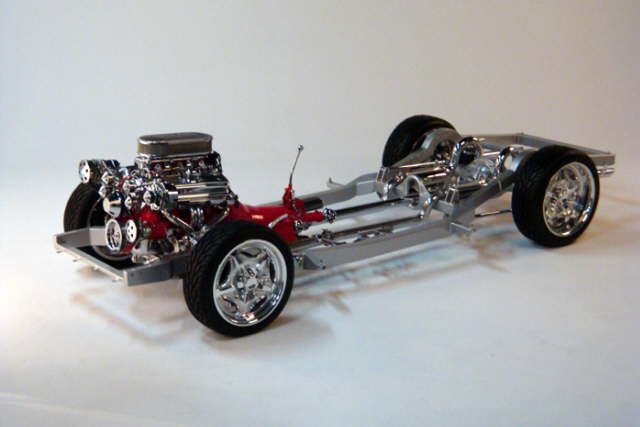

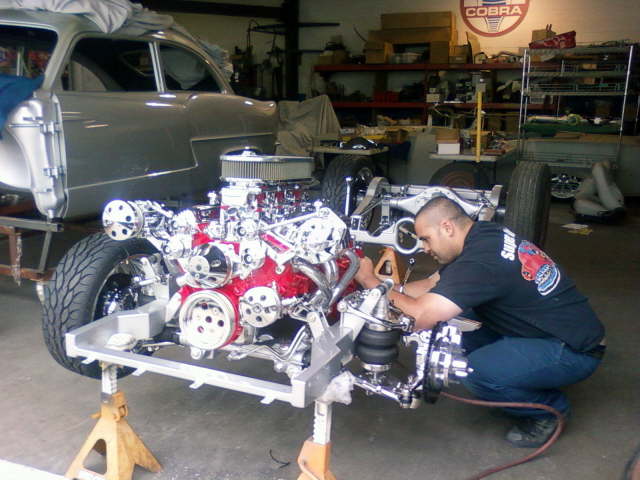

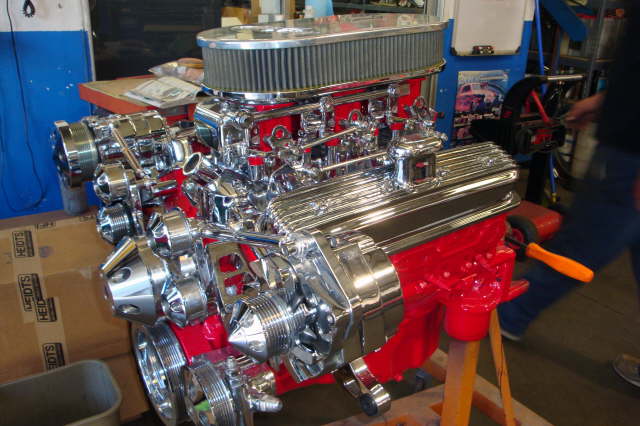

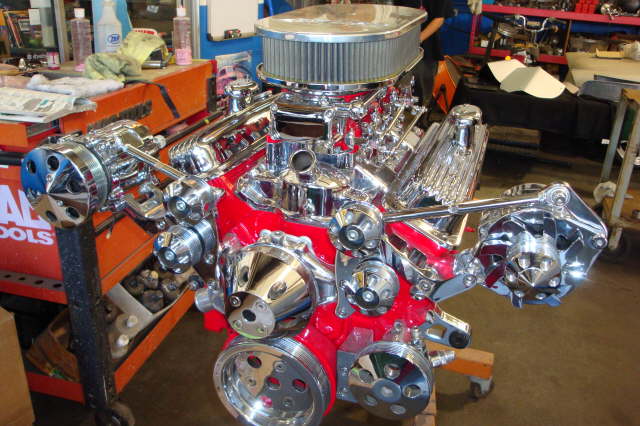

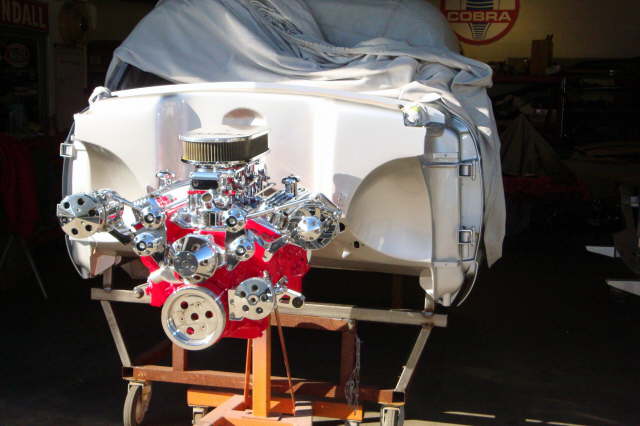

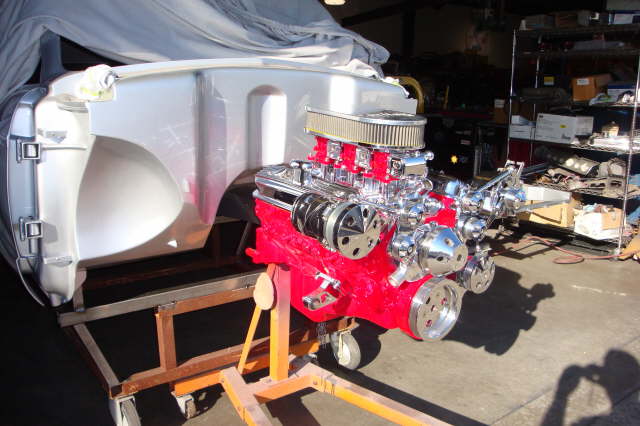

Update Aug. 2010 – The engine is almost ready to install into the frame. Waiting for the oil pan and some misc. parts for the trans. to come back from chrome plating.		Note: all the carb linkage is chromed as well. All three carbs had to be taken completely apart and re- assembled after the portions that could be chrome plated were plated.
Some part could not be plated but we plated all those that could be.

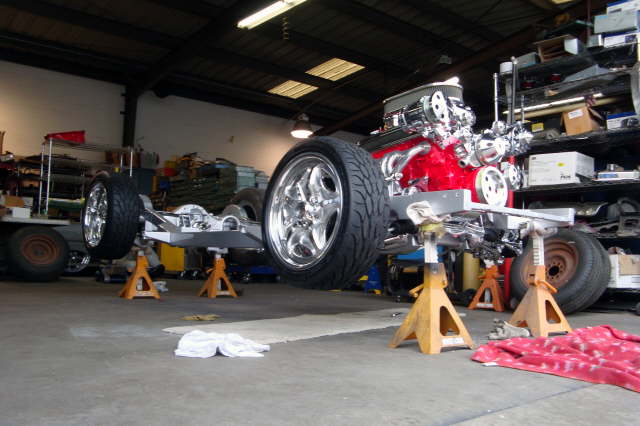

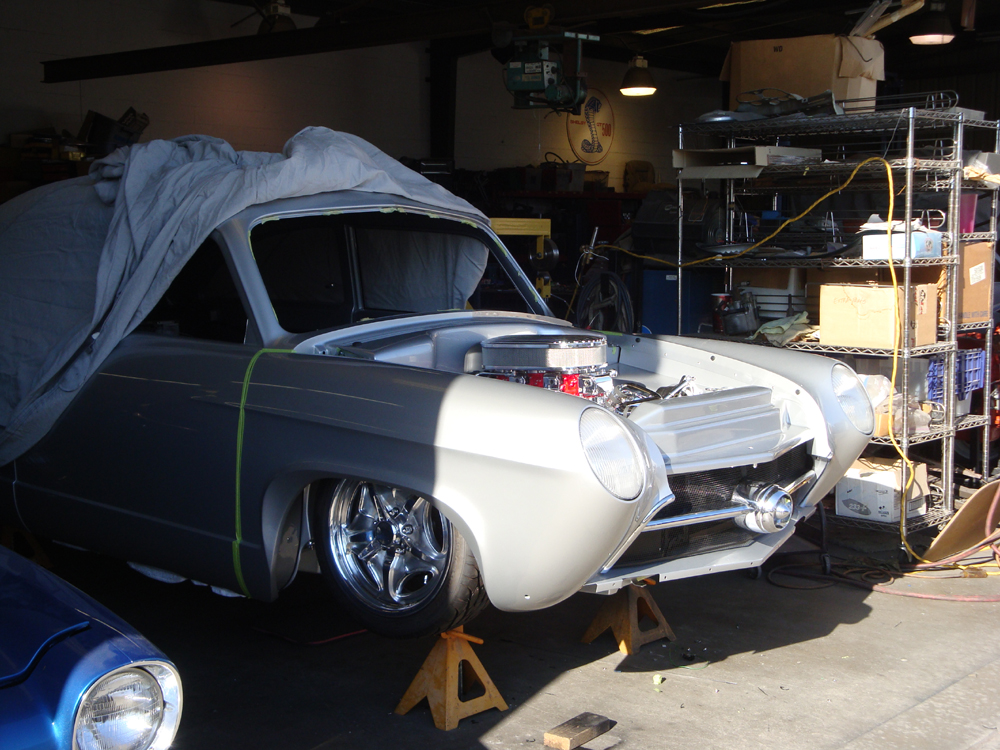

		latest pics of present work on the 51 Henry J. Oct. 2010
Latest Update Dec. 7 – Some pics of the latest work being done on the henry j

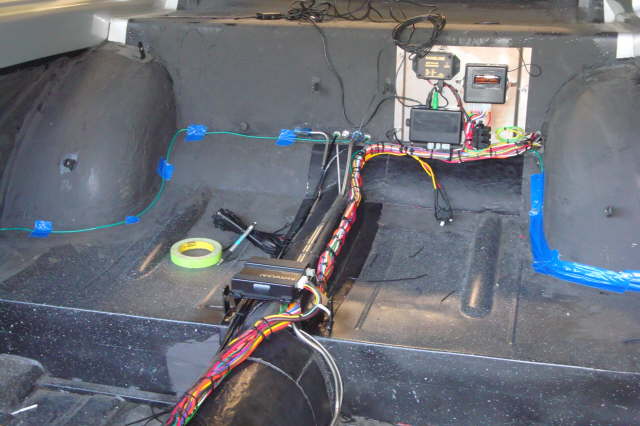

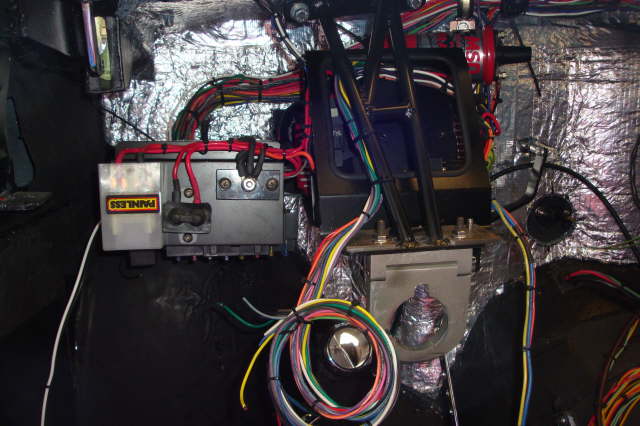

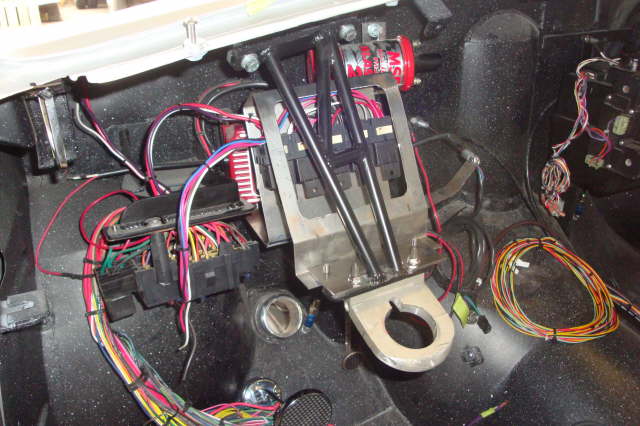

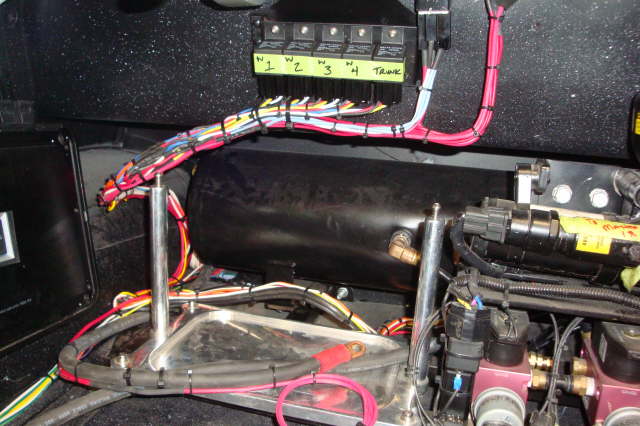

Here are some pictures of the wiring work being done. Car is close to finishing.

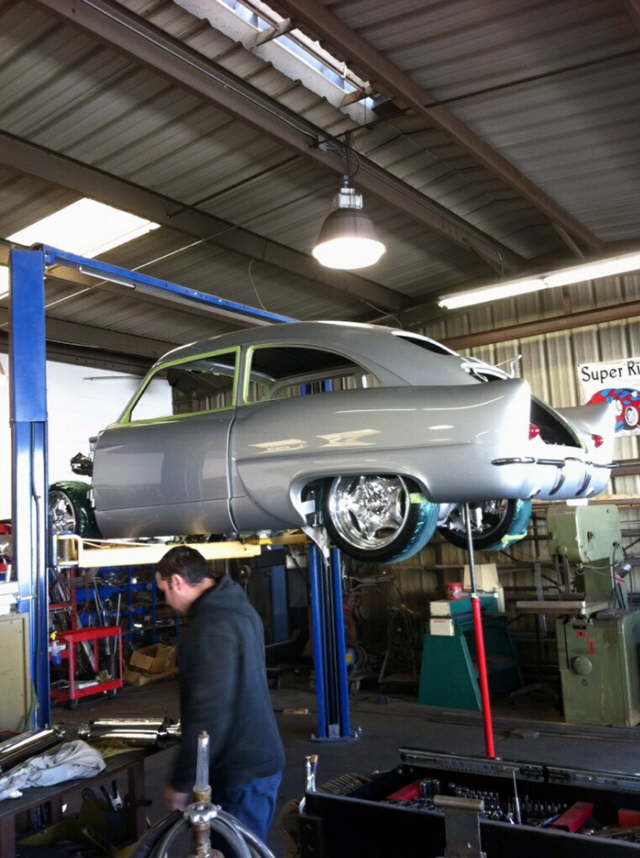

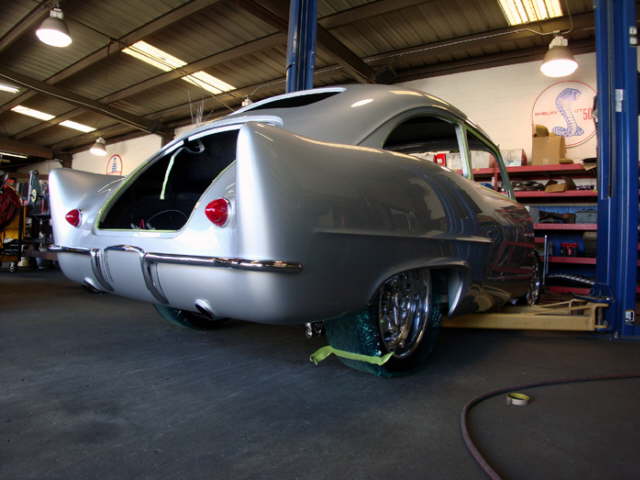

		Latest pics taken this week. Getting close to becoming a real car. September 2011
